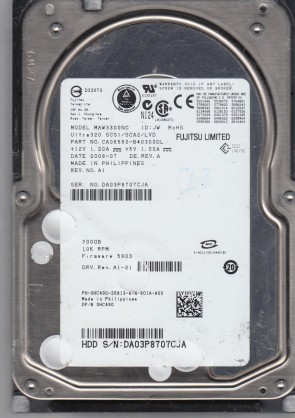

Fujitsu MAW3300NC 3.5″ hard drive with a storage capacity of 300 GB and featuring a SCSI interface.
All information about the Fujitsu MAW3300NC hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Fujitsu MAW3300NC Technical Details:
- Hard Disk Model: MAW3300NC
- Disk Family: –
- Form Factor: 3.5″
- Capacity: 300 GB (300 x 1 000 000 000 bytes)
- Number Of Disks: 4
- Number Of Heads: 8
- Rotational Speed: 10025 RPM
- Rotation Time: 5.99 ms
- Average Rotational Latency: 2.99 ms
- Disk Interface: Ultra320 SCSI
- Buffer-Host Max. Rate: 320 MB/seconds
- Buffer Size: 8192 KB
- Drive Ready Time (typical): 30 seconds
- Average Seek Time: 4.5 ms
- Track To Track Seek Time: 0.2 ms
- Full Stroke Seek Time: 10 ms
- Width: 101.6 mm (3.98 inch)
- Depth: 146 mm (5.75 inch)
- Height: 25.4 mm (0.98 inch)
- Weight: 750 grams (1.65 pounds)
- Manufacturer:
Fujitsu MAW3300NC Hard Drives:
- MAW3300NC, PN CA06550-B40300DL, Fujitsu 300GB SCSI 3.5 Hard Drive
Fujitsu MAW3300NC Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Fujitsu MAW3300NC Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Fujitsu MAW3300NC hard drive experience is a burned circuit board (PCB). Therefore, if you need to replace the PCB, be sure to match the “PCB Number” of the current board, such as CA26338-B62206BA, etc.
