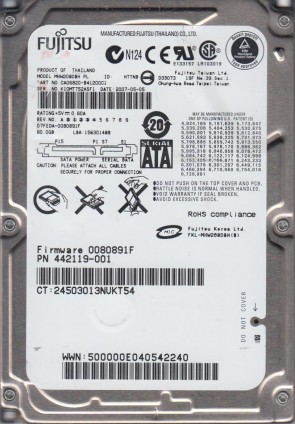

MHW2080BH PL Fujitsu 2.5″ hard drive with a storage capacity of 80GB and featuring a SATA interface. MHW2080BH Fujitsu 80GB 5400RPM 8MB Cache SATA 7-Pin 2.5-inch Laptop Hard Drive.
All information about the Fujitsu MHW2080BH PL hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Fujitsu MHW2080BH PL Technical Details:
- Hard Disk Model: FUJITSU MHW2080BH
- Disk Family: –
- Form Factor: 2.5″
- Capacity: 80 GB (80 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/150
- Buffer-Host Max. Rate: 150 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 12 ms
- Track To Track Seek Time: 1.5 ms
- Full Stroke Seek Time: 22 ms
- Width: 70 mm (2.76 inch)
- Depth: 100 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 101 grams (0.22 pounds)
- Acoustic (Idle): 2.5 Bel
- Required Power For Spinup: 1100 mA
- Power Required (Seek): 2.1 W
- Power Required (Idle): 0.8 W
- Power Required (Standby): 0.13 W
- Manufacturer: Fujitsu Computer Products of America, Inc.
Fujitsu MHW2080BH PL Hard Drives:
- MHW2080BH PL, PN CA06820-B41200C1, Fujitsu 80GB SATA 2.5″ Hard Drive
- MHW2080BH PL, PN CA06820-B31200DL, Fujitsu 80GB SATA 2.5″ Hard Drive
- MHW2080BH PL, PN CA06820-B39200AP, Fujitsu 80GB SATA 2.5″ Hard Drive
- MHW2080BH PL, PN CA06820-B492000L, Fujitsu 80GB SATA 2.5″ Hard Drive
- MHW2080BH PL, PN CP170870-01, Fujitsu 80GB SATA 2.5″ Hard Drive
- MHW2080BH PL, PN CA06820-B332000T, Fujitsu 80GB SATA 2.5″ Hard Drive
Fujitsu MHW2080BH PL Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Fujitsu MHW2080BH PL Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Fujitsu MHW2080BH PL Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
CA26343-B84304BA, etc.
