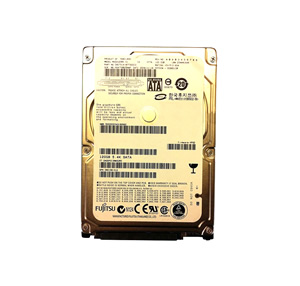

MHZ2120BS Fujitsu 2.5″ hard drive with a storage capacity of 120 GB and featuring a SATA interface. MHZ2120BS FUJITSU 2.5″ 120 GB Serial-ATA/300 5400 RPM Hard Drive.
All information about the Fujitsu MHZ2120BS hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Fujitsu MHZ2120BS Technical Details:
- Hard Disk Model: FUJITSU MHZ2120BS
- Disk Family: –
- Form Factor: 2.5″
- Capacity: 120 GB (120 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 12 ms
- Track To Track Seek Time: 1.5 ms
- Full Stroke Seek Time: 22 ms
- Width: 70 mm (2.76 inch)
- Depth: 100 mm (3.94 inch)
- Height: 9.5 mm (0.35 inch)
- Weight: 96 grams (0.21 pounds)
- Acoustic (Idle): 2.4 Bel
- Required Power For Spinup: 1000 mA
- Power Required (Seek): 1.9 W
- Power Required (Idle): 0.6 W
- Power Required (Standby): 0.13 W
- Manufacturer: Fujitsu Computer Products of America, Inc.
Fujitsu MHZ2120BS Hard Drives:
- MHZ2120BS FUJITSU 2.5″ 120 GB Serial-ATA/300 5400 RPM Hard Drive.
Fujitsu MHZ2120BS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Fujitsu MHZ2120BS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Fujitsu MHZ2120BS hard drive experience is a burned circuit board (PCB). Therefore, if you need to replace the PCB, be sure to match the “PCB Number” of the current board, such as etc.
