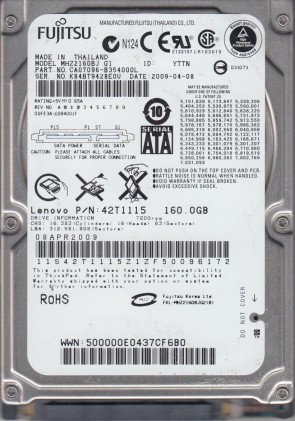

MHZ2160BJ G1 Fujitsu 2.5″ hard drive with a storage capacity of 160GB and featuring a SATA interface. MHZ2160BJ Fujitsu 160GB 7200RPM 16MB Cache SATA 3GB/s 7-Pin 2.5-inch Laptop Hard Drive (m.

All information about the Fujitsu MHZ2160BJ G1 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Fujitsu MHZ2160BJ G1 Technical Details:

• Hard Disk Model: FUJITSU MHZ2160BJ
• Disk Family: –
• Form Factor: 2.5″
• Capacity: 160 GB (160 x 1 000 000 000 bytes)
• Number Of Disks: 1
• Number Of Heads: 2
• Rotational Speed: 7200 RPM
• Rotation Time: 8.33 ms
• Average Rotational Latency: 4.17 ms
• Disk Interface: Serial-ATA/300
• Buffer-Host Max. Rate: 300 MB/seconds
• Buffer Size: 16384 KB
• Average Seek Time: 10.5 ms
• Track To Track Seek Time: 1.5 ms
• Full Stroke Seek Time: 20.5 ms
• Width: 70 mm (2.76 inch)
• Depth: 100 mm (3.94 inch)
• Height: 9.5 mm (0.37 inch)
• Weight: 116 grams (0.26 pounds)
• Acoustic (Idle): 2.5 Bel
• Required Power For Spinup: 1100 mA
• Power Required (Seek): 2.1 W
• Power Required (Idle): 0.8 W
• Power Required (Standby): 0.13 W
• Manufacturer: Fujitsu Computer Products of America, Inc.

Fujitsu MHZ2160BJ G1 Hard Drives:

• MHZ2160BJ G1, PN CA07096-B354000L, Fujitsu 160GB SATA 2.5″ Hard Drive

Fujitsu MHZ2160BJ G1 Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Fujitsu MHZ2160BJ G1 Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Fujitsu MHZ2160BJ G1 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
CA26344-B51304BA, etc.
