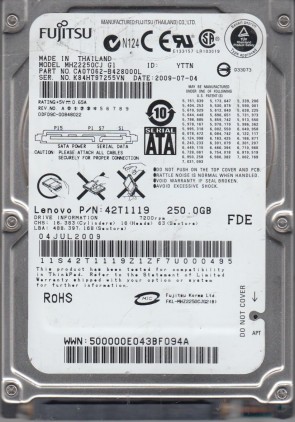

MHZ2250CJ G1 Fujitsu 2.5″ hard drive with a storage capacity of 250GB and featuring a SATA interface. MHZ2250CJ Toshiba MHZ2 CJ MHZ2250CJ 250 GB 2.5 Internal Hard Drive SATA/300 7200 rpm 16 MB Buffer Hot Swappable.
All information about the Fujitsu MHZ2250CJ G1 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Fujitsu MHZ2250CJ G1 Technical Details:
- Hard Disk Model: FUJITSU MHZ2250CJ
- Disk Family: –
- Form Factor: 2.5″
- Capacity: 250 GB (250 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 16384 KB
- Average Seek Time: 10.5 ms
- Track To Track Seek Time: 1.5 ms
- Full Stroke Seek Time: 20.5 ms
- Width: 70 mm (2.76 inch)
- Depth: 100 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 116 grams (0.26 pounds)
- Acoustic (Idle): 2.5 Bel
- Required Power For Spinup: 1100 mA
- Power Required (Seek): 2.1 W
- Power Required (Idle): 0.8 W
- Power Required (Standby): 0.13 W
- Manufacturer: Fujitsu Computer Products of America, Inc.
Fujitsu MHZ2250CJ G1 Hard Drives:
- MHZ2250CJ G1, PN CA07062-B428000L, Fujitsu 250GB SATA 2.5″ Hard Drive
Fujitsu MHZ2250CJ G1 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Fujitsu MHZ2250CJ G1 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Fujitsu MHZ2250CJ G1 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
CA26344-B51304BA, etc.
