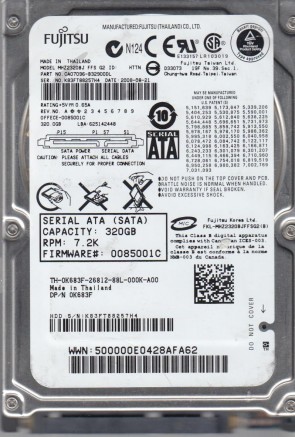

MHZ2320BJ FFS G2 Fujitsu 2.5″ hard drive with a storage capacity of 320GB and featuring a SATA interface. MHZ2320BJ-G2 Toshiba MHZ2320BJ 320 GB 2.5 Plug-in Module Hard Drive SATA/300 7200 rpm 16 MB Buffer Hot Swappable.

All information about the Fujitsu MHZ2320BJ FFS G2 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Fujitsu MHZ2320BJ FFS G2 Technical Details:

• Hard Disk Model: FUJITSU MHZ2320BJ
• Disk Family: –
• Form Factor: 2.5″
• Capacity: 320 GB (320 x 1 000 000 000 bytes)
• Number Of Disks: 2
• Number Of Heads: 4
• Rotational Speed: 7200 RPM
• Rotation Time: 8.33 ms
• Average Rotational Latency: 4.17 ms
• Disk Interface: Serial-ATA/300
• Buffer-Host Max. Rate: 300 MB/seconds
• Buffer Size: 16384 KB
• Average Seek Time: 10.5 ms
• Track To Track Seek Time: 1.5 ms
• Full Stroke Seek Time: 20.5 ms
• Width: 70 mm (2.76 inch)
• Depth: 100 mm (3.94 inch)
• Height: 9.5 mm (0.37 inch)
• Weight: 116 grams (0.26 pounds)
• Acoustic (Idle): 2.5 Bel
• Required Power For Spinup: 1100 mA
• Power Required (Seek): 2.1 W
• Power Required (Idle): 0.8 W
• Power Required (Standby): 0.13 W
• Manufacturer: Fujitsu Computer Products of America, Inc.

Fujitsu MHZ2320BJ FFS G2 Hard Drives:

• MHZ2320BJ FFS G2, PN CA07096-B32900DL, Fujitsu 320GB SATA 2.5″ Hard Drive

Fujitsu MHZ2320BJ FFS G2 Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Fujitsu MHZ2320BJ FFS G2 Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Fujitsu MHZ2320BJ FFS G2 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
CA26344-B51304BA, etc.
