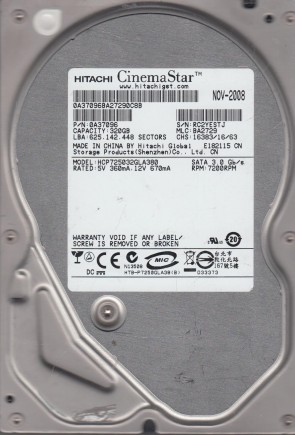

HCP725032GLA380 Hitachi 3.5″ hard drive with a storage capacity of 320GB and featuring a SATA interface. HCP725032GLA380 Hitachi CinemaStar P7K500 320GB 7200RPM SATA 3GB/s 8MB Cache 3.5-inch Hard Disk Drive.
All information about the Hitachi HCP725032GLA380 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Hitachi HCP725032GLA380 Technical Details:
- Hard Disk Model: HCP725032GLA380
- Disk Family: CinemaStar P7K500
- Form Factor: 3.5″
- Capacity: 320 GB (320 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 3
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 14 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 550 grams (1.21 pounds)
- Required Power For Spinup: 3300 mA
- Power Required (Seek): 7 W
- Power Required (Idle): 5 W
- Power Required (Standby): 2 W
- Manufacturer:
Hitachi HCP725032GLA380 Hard Drives:
- HCP725032GLA380, PN 0A37096, MLC BA2729, Hitachi 320GB SATA 3.5″ Hard Drive
Hitachi HCP725032GLA380 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Hitachi HCP725032GLA380 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Hitachi HCP725032GLA380 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple Main Controller IC Number revisions:
0A53129, etc.
Multiple Sticker Number revisions:
0A29738 BA2631_, etc.
