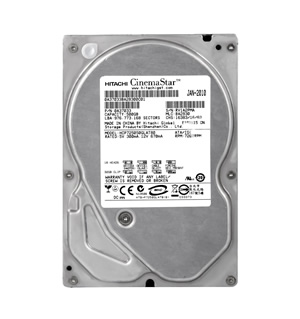

HCP725050GLAT80 Hitachi 3.5″ hard drive with a storage capacity of 500 GB and featuring a IDE interface. HCP725050GLAT80 HITACHI 3.5″ 500 GB Ultra-ATA/133 CinemaStar P7K500 7200 RPM Hard Drive.
All information about the Hitachi HCP725050GLAT80 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Hitachi HCP725050GLAT80 Technical Details:
- Hard Disk Model: HCP725050GLAT80
- Disk Family: CinemaStar P7K500
- Form Factor: 3.5″
- Capacity: 500 GB (500 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Ultra-ATA/133
- Buffer-Host Max. Rate: 133 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 14 ms
- Width: 101.6 mm (3.98 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.02 inch)
- Weight: 550 grams (1.21 pounds)
- Required Power For Spinup: 3100 mA
- Power Required (Seek): 7 W
- Power Required (Idle): 5 W
- Power Required (Standby): 2 W
- Manufacturer:
Hitachi HCP725050GLAT80 Hard Drives:
- HCP725050GLAT80 HITACHI 3.5″ 500 GB Ultra-ATA/133 CinemaStar P7K500 7200 RPM Hard Drive.
Hitachi HCP725050GLAT80 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Hitachi HCP725050GLAT80 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Hitachi HCP725050GLAT80 hard drive experience is a burned circuit board (PCB). Therefore, if you need to replace the PCB, be sure to match the “Main Contorl Chip Number” of the current board, such as etc.
