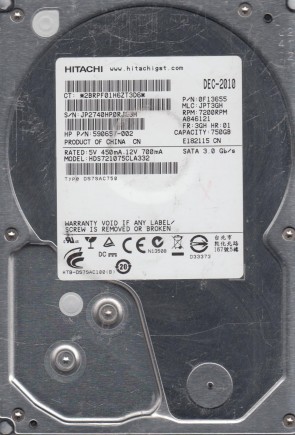

HDS721075CLA332 Hitachi 3.5″ hard drive with a storage capacity of 750GB and featuring a SATA interface. HDS721075CLA332 Hitachi Deskstar 7K1000.C 750GB 7200RPM SATA 3GB/s 32MB Cache 3.5-inch Hard Disk Drive.
All information about the Hitachi HDS721075CLA332 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Hitachi HDS721075CLA332 Technical Details:
- Hard Disk Model: HITACHI HDS721075CLA332
- Disk Family: Deskstar 7K1000.C
- Form Factor: 3.5″
- Capacity: 750 GB (750 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 3
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 32768 KB
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 680 grams (1.50 pounds)
- Required Power For Spinup: 3300 mA
- Power Required (Seek): 7 W
- Power Required (Idle): 5 W
- Power Required (Standby): 2 W
- Manufacturer: Hitachi Global Storage Technologies
Hitachi HDS721075CLA332 Hard Drives:
- HDS721075CLA332, PN 0F13655, MLC JPT3GH, Hitachi 750GB SATA 3.5″ Hard Drive
- HDS721075CLA332, PN 0F11018, MLC JPT3GC, Hitachi 750GB SATA 3.5″ Hard Drive
- 750GB Hitachi HDS721075CLA332 3.5" SATA 7200rpm Hard Drive
- HDS721075CLA332, PN 0F10838, MLC JPT3FF, Hitachi 750GB SATA 3.5″ Hard Drive
- HDS721075CLA332, PN 0F11018, MLC JPT3BF, Hitachi 750GB SATA 3.5″ Hard Drive
Hitachi HDS721075CLA332 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Hitachi HDS721075CLA332 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Hitachi HDS721075CLA332 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple Main Controller IC Number revisions:
0A71256, etc.
Multiple Sticker Number revisions:
0J72947 BA3786_, 0A72947 BA3786_, 0A72947 BA3321B, etc.
