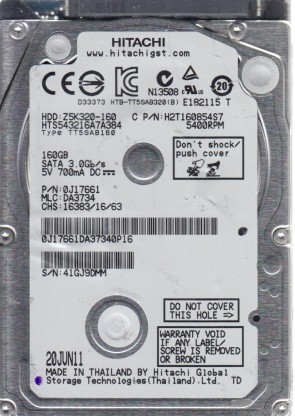

HTS543216A7A384 Hitachi 2.5″ hard drive with a storage capacity of 160GB and featuring a SATA interface. HTS543216A7A384 Hitachi Travelstar Z5K320 160GB 5400RPM SATA 3GB/s 8MB Cache 2.5-inch Hard Disk Drive.
All information about the Hitachi HTS543216A7A384 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Hitachi HTS543216A7A384 Technical Details:
- Hard Disk Model: HITACHI HTS543216A7A384
- Disk Family: Travelstar Z5K320
- Form Factor: 2.5″
- Capacity: 160 GB (160 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 1
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 13 ms
- Track To Track Seek Time: 1 ms
- Full Stroke Seek Time: 25 ms
- Width: 70 mm (2.76 inch)
- Depth: 100 mm (3.94 inch)
- Height: 7 mm (0.28 inch)
- Weight: 95 grams (0.21 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.6 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 900 mA
- Power Required (Seek): 1.7 W
- Power Required (Idle): 0.8 W
- Power Required (Standby): 0.2 W
- Manufacturer: Hitachi Global Storage Technologies
Hitachi HTS543216A7A384 Hard Drives:
- HTS543216A7A384, PN 0J17661, MLC DA3734, Hitachi 160GB SATA 2.5″ Hard Drive
- HTS543216A7A384, PN 0J18921, MLC DA4024, Hitachi 160GB SATA 2.5″ Hard Drive
- HTS543216A7A384, PN 0J13121, MLC DA3805, Hitachi 160GB SATA 2.5″ Hard Drive
- HTS543216A7A384, PN 0A78601, MLC DA3734, Hitachi 160GB SATA 2.5″ Hard Drive
Hitachi HTS543216A7A384 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Hitachi HTS543216A7A384 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Hitachi HTS543216A7A384 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple Main Controller IC Number revisions:
88I9105-TLA2, etc.
Multiple Sticker Number revisions:
0A75647 DA4721E, 0A75647 DA3424E, 0A75647 DA3424D, 0A75647 DA4721, 0A75647 DA4721_, etc.
