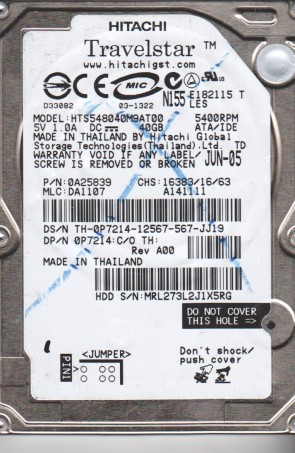

HTS548040M9AT00 Hitachi 2.5″ hard drive with a storage capacity of 40GB and featuring a IDE interface. HTS548040M9AT00 Hitachi TravelStar 5K80 40GB 5400RPM 8MB Cache IDE/ATA 44-Pin 2.5-inch Laptop Hard Drive.
All information about the Hitachi HTS548040M9AT00 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Hitachi HTS548040M9AT00 Technical Details:
- Hard Disk Model: HITACHI HTS548040M9AT00
- Disk Family: Travelstar 5K80
- Form Factor: 2.5″
- Capacity: 40 GB (40 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Ultra-ATA/100
- Buffer-Host Max. Rate: 100 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 12 ms
- Track To Track Seek Time: 2.5 ms
- Full Stroke Seek Time: 23 ms
- Width: 70 mm (2.76 inch)
- Depth: 100 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 95 grams (0.21 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.6 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 900 mA
- Power Required (Seek): 1.7 W
- Power Required (Idle): 0.8 W
- Power Required (Standby): 0.2 W
- Manufacturer: Hitachi Global Storage Technologies
Hitachi HTS548040M9AT00 Hard Drives:
- HTS548040M9AT00, PN 0A25839, MLC DA1107, Hitachi 40GB IDE 2.5″ Hard Drive
- HTS548040M9AT00, PN 08K0856, MLC H69553, Hitachi 40GB IDE 2.5″ Hard Drive
- HTS548040M9AT00, PN 08K0866, MLC H71515, Hitachi 40GB IDE 2.5″ Hard Drive
- HTS548040M9AT00, PN 08K0846, MLC DA1019, Hitachi 40GB IDE 2.5″ Hard Drive
- HTS548040M9AT00, PN 08K0637, MLC H69553, Hitachi 40GB IDE 2.5″ Hard Drive
- HTS548040M9AT00, PN 08K0846, MLC DA1053, Hitachi 40GB IDE 2.5″ Hard Drive
- HTS548040M9AT00, PN 08K0846, MLC H71477, Hitachi 40GB IDE 2.5″ Hard Drive
Hitachi HTS548040M9AT00 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Hitachi HTS548040M9AT00 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Hitachi HTS548040M9AT00 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple Main Controller IC Number revisions:
08K0672, 08K2821, etc.
Multiple Sticker Number revisions:
14R9061 J41063G, 14R9062 J41063F, 08K2817 H69545_, 08K2825 H71451A, 08K2817 H69545, etc.
