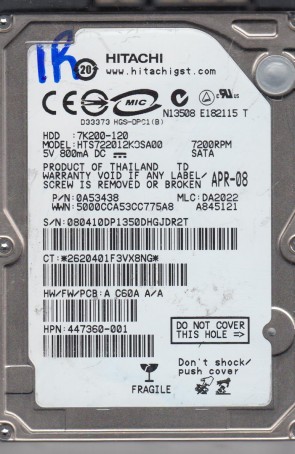

HTS722012K9SA00 Hitachi 2.5″ hard drive with a storage capacity of 120GB and featuring a SATA interface. HTS722012K9SA00 Hitachi Travelstar 7K200 120GB 7200RPM SATA 1.5GB/s 16MB Cache 2.5-inch Hard Disk Drive.
All information about the Hitachi HTS722012K9SA00 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Hitachi HTS722012K9SA00 Technical Details:
- Hard Disk Model: HITACHI HTS722012K9SA00
- Disk Family: Travelstar 7K200
- Form Factor: 2.5″
- Capacity: 120 GB (120 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 3
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/150
- Buffer-Host Max. Rate: 150 MB/seconds
- Buffer Size: 16384 KB
- Average Seek Time: 10 ms
- Track To Track Seek Time: 1 ms
- Full Stroke Seek Time: 18 ms
- Width: 70 mm (2.76 inch)
- Depth: 100 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 115 grams (0.25 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.6 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 900 mA
- Power Required (Seek): 1.7 W
- Power Required (Idle): 0.8 W
- Power Required (Standby): 0.2 W
- Manufacturer: Hitachi Global Storage Technologies
Hitachi HTS722012K9SA00 Hard Drives:
- HTS722012K9SA00, PN 0A53438, MLC DA2022, Hitachi 120GB SATA 2.5″ Hard Drive
- HTS722012K9SA00, PN 0A50938, MLC DA2112, Hitachi 120GB SATA 2.5″ Hard Drive
- HTS722012K9SA00, PN 0A53698, MLC DA2193, Hitachi 120GB SATA 2.5″ Hard Drive
Hitachi HTS722012K9SA00 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Hitachi HTS722012K9SA00 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Hitachi HTS722012K9SA00 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple Main Controller IC Number revisions:
0A52030, 0A54359, etc.
Multiple Sticker Number revisions:
0A53104 DA1798A, 0A53104 DA1798_, 0A54300 DA1804A, 0A53104DA1798A, etc.
