HUA722050CLA330 Hitachi 3.5″ hard drive with a storage capacity of 500GB and featuring a SATA interface. HUA722050CLA330 Hitachi Ultrastar A7K2000 500GB 7200RPM SATA 3GB/s 32MB Cache 3.5-inch Hard Disk Drive.

All information about the Hitachi HUA722050CLA330 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Hitachi HUA722050CLA330 Technical Details:

  • Hard Disk Model: HUA722050CLA330
  • Disk Family: Ultrastar A7K2000
  • Form Factor: 3.5″
  • Capacity: 500 GB (500 x 1 000 000 000 bytes)
  • Rotational Speed: 7200 RPM
  • Rotation Time: 8.33 ms
  • Average Rotational Latency: 4.17 ms
  • Disk Interface: Serial-ATA/300
  • Buffer-Host Max. Rate: 300 MB/seconds
  • Buffer Size: 32768 KB
  • Average Seek Time: 8.5 ms
  • Width: 101.6 mm (4.00 inch)
  • Depth: 147 mm (5.79 inch)
  • Height: 26.1 mm (1.03 inch)
  • Weight: 680 grams (1.50 pounds)
  • Required Power For Spinup: 3300 mA
  • Power Required (Seek): 7 W
  • Power Required (Idle): 5 W
  • Power Required (Standby): 2 W
  • Manufacturer:

Hitachi HUA722050CLA330 Hard Drives:

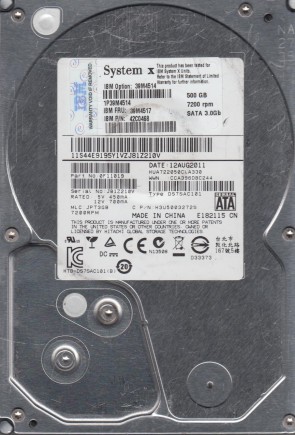

HUA722050CLA330 Hitachi 500GB SATA 3.5 Inch Hard Drive

  • HUA722050CLA330, PN 0F11019, MLC JPT3GB, IBM 500GB SATA 3.5″ Hard Drive
  • HUA722050CLA330, PN 0F11000, MLC JPT39C, Hitachi 500GB SATA 3.5″ Hard Drive
  • HUA722050CLA330, PN 0F11000, MLC JPT3EA, Hitachi 500GB SATA 3.5″ Hard Drive
  • HUA722050CLA330, PN 0F18775, MLC JPT3KB, Dell 500GB SATA 3.5″ Hard Drive
  • HUA722050CLA330, PN 0F13700, MLC JPT3MA, Hitachi 500GB SATA 3.5″ Hard Drive
  • HUA722050CLA330, PN 0F11019, MLC JPT3PH, IBM 500GB SATA 3.5″ Hard Drive

Hitachi HUA722050CLA330 Failure Symptoms:

  • Electrical Failure Symptoms:
    Drive is powered, but shows no sign of function;
    Disk knocking as the motor fails to spin;
    Clicking sound as the heads search or initialize;
  • Mechanical Failure Symptoms:
    Clicking, grinding sounds;
    Completely quiet due to ” motor freeze”;
    “music” tone as the disk is powered up;
  • Logical Failure Examples:
    Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
  • Firmware Failure Symptoms:
    drive powers up, but is not recognised by the computer;
    Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
    Drive freezes during booting up;
  • Bad Platter Area Symptoms:
    Hard disk still accessible but appear to “hang” or “sluggish”;
    Constant Cyclic Redundancy (CRC) errors;
    Unable to access folders or files which could be seen;
  • Complex Failure Model

Hitachi HUA722050CLA330 Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Hitachi HUA722050CLA330 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple Main Controller IC Number revisions:
0A71261, etc.

Multiple Sticker Number revisions:
0A71338 BA3294A, 0A71338 BA3786_, 0A71338 BA3786C, etc.
