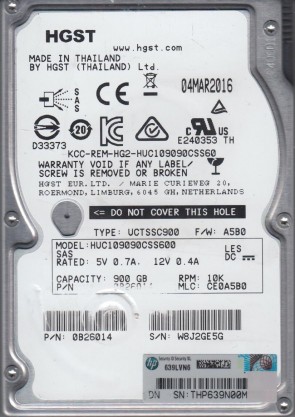

HUC109090CSS600 Hitachi 2.5″ hard drive with a storage capacity of 900GB and featuring a SAS interface. HUC109090CSS600 Hitachi Ultrastar C10K900 900GB 10000RPM SAS 6GB/s SFF 2.5-inch Hard Drive.

All information about the Hitachi HUC109090CSS600 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Hitachi HUC109090CSS600 Technical Details:

• Hard Disk Model: HUC109090CSS600
• Disk Family: Ultrastar C10K900
• Form Factor: 2.5″
• Capacity: 900 GB (900 x 1 000 000 000 bytes)
• Number Of Disks: 3
• Number Of Heads: 6
• Rotational Speed: 10000 RPM
• Rotation Time: 6.00 ms
• Average Rotational Latency: 3.00 ms
• Disk Interface: SAS
• Buffer-Host Max. Rate: 600 MB/seconds
• Buffer Size: 65536 KB
• Average Seek Time: 3.8 ms
• Width: 70.1 mm (2.76 inch)
• Depth: 100.6 mm (3.96 inch)
• Height: 14.8 mm (0.58 inch)
• Weight: 204 grams (0.45 pounds)
• Acoustic (Idle): 2.4 Bel
• Acoustic (Min performance and volume): 2.6 Bel
• Acoustic (Max performance and volume): 2.6 Bel
• Required Power For Spinup: 900 mA
• Power Required (Seek): 1.7 W
• Power Required (Idle): 0.8 W
• Power Required (Standby): 0.2 W
• Manufacturer:

Hitachi HUC109090CSS600 Hard Drives:

• HUC109090CSS600, PN 0B26014, MLC CE0A5B0, Hitachi 900GB SAS 2.5″ Hard Drive
• Hitachi HUC109090CSS600, 10000RPM, 6.0Gp/s, 900GB SAS 2.5″ HDD
• HUC109090CSS600, PN 0B26029, MLC HPDC, HP 900GB SAS 2.5″ Hard Drive
• HUC109090CSS600, PN 0B26029, MLC HPD1, HP 900GB SAS 2.5″ Hard Drive

Hitachi HUC109090CSS600 Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Hitachi HUC109090CSS600 Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Hitachi HUC109090CSS600 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple Main Controller IC Number revisions:
0B26546, etc.

Multiple Sticker Number revisions:
0B27964 AA1642P, 0B27964 AA1642K, etc.
