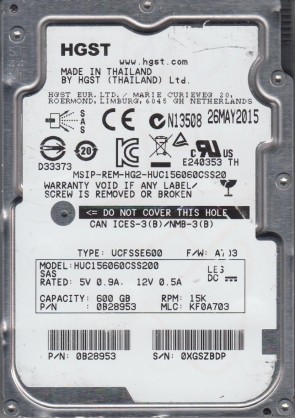

HUC156060CSS200 Hitachi 2.5″ hard drive with a storage capacity of 600GB and featuring a SAS interface. HUC156060CSS200 Hitachi Ultrastar C15K600 600GB 15000RPM SAS-12GB/s 128MB Cache 512N 2.5-inch Enterprise Hard Drive.
All information about the Hitachi HUC156060CSS200 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Hitachi HUC156060CSS200 Technical Details:
- Hard Disk Model: HUC156060CSS20
- Disk Family: Ultrastar C15K600
- Form Factor: 2.5″
- Capacity: 600 GB (600 x 1 000 000 000 bytes)
- Number Of Disks: 3
- Number Of Heads: 6
- Rotational Speed: 15030 RPM
- Rotation Time: 3.99 ms
- Average Rotational Latency: 2.00 ms
- Disk Interface: SAS
- Buffer-Host Max. Rate: 1200 MB/seconds
- Buffer Size: 131072 KB
- Average Seek Time: 2.9 ms
- Width: 70.1 mm (2.76 inch)
- Depth: 100.45 mm (3.95 inch)
- Height: 14.8 mm (0.58 inch)
- Weight: 219 grams (0.48 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.6 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 900 mA
- Power Required (Seek): 1.7 W
- Power Required (Idle): 0.8 W
- Power Required (Standby): 0.2 W
- Manufacturer:
Hitachi HUC156060CSS200 Hard Drives:
- HUC156060CSS200, PN 0B28953, MLC KF0A703, Hitachi 600GB SAS 2.5″ Hard Drive
Hitachi HUC156060CSS200 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Hitachi HUC156060CSS200 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Hitachi HUC156060CSS200 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple Main Controller IC Number revisions:
, etc.
Multiple Sticker Number revisions:
0B31472 AA2280D, etc.
