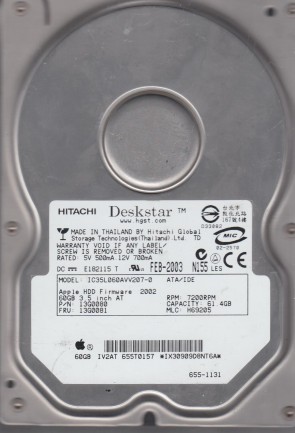

IC35L060AVV207-0 Hitachi 3.5″ hard drive with a storage capacity of 60GB and featuring a IDE interface. IC35L060AVV207-0 Hitachi Deskstar 180GXP 40GB 7200RPM IDE/ATA 2MB Cache 40-Pin 3.5-inch Hard Drive.
All information about the Hitachi IC35L060AVV207-0 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Hitachi IC35L060AVV207-0 Technical Details:
- Hard Disk Model: HITACHI IC35L060AVV207
- Disk Family: Deskstar 180GXP
- Form Factor: 3.5″
- Capacity: 60 GB (60 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Ultra-ATA/100
- Buffer-Host Max. Rate: 100 MB/seconds
- Buffer Size: 2048 KB
- Average Seek Time: 8.5 ms
- Track To Track Seek Time: 1.1 ms
- Full Stroke Seek Time: 15 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 146.0 mm (5.75 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 640 grams (1.41 pounds)
- Acoustic (Idle): 3.1 Bel
- Acoustic (Min performance and volume): 3.2 Bel
- Acoustic (Max performance and volume): 3.4 Bel
- Required Power For Spinup: 2600 mA
- Power Required (Seek): 6.7 W
- Power Required (Idle): 5.4 W
- Power Required (Standby): 1.0 W
- Manufacturer: Hitachi Global Storage Technologies
Hitachi IC35L060AVV207-0 Hard Drives:
- IC35L060AVV207-0, PN 13G0080, MLC H69205, Hitachi 61GB IDE 3.5″ Hard Drive
- IC35L060AVV207-0, PN 07N9673, MLC H69404, Hitachi 60GB IDE 3.5″ Hard Drive
- IC35L060AVV207-0, PN 07N8154, MLC H32657, IBM 61GB IDE 3.5″ Hard Drive
- IC35L060AVV207-0, PN 07N9556, MLC H32657, IBM 61GB IDE 3.5″ Hard Drive
- IC35L060AVV207-0, PN 07N9209, MLC H32657, Hitachi 61GB IDE 3.5″ Hard Drive
- IC35L060AVV207-0, PN 08K0994, MLC H69205, Hitachi 60GB IDE 3.5″ Hard Drive
Hitachi IC35L060AVV207-0 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Hitachi IC35L060AVV207-0 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Hitachi IC35L060AVV207-0 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple Main Controller IC Number revisions:
66P5192, 47P3206, 47P2010, 47P3600, etc.
Multiple Sticker Number revisions:
08K2592 H69284_, 07N9100 H32644_, 07N8491 H69144A, 07N9226 H69056_, etc.
