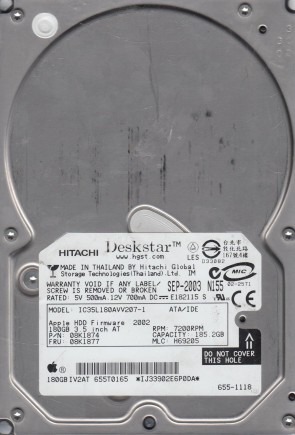

IC35L180AVV207-1 Hitachi 3.5″ hard drive with a storage capacity of 185.2GB and featuring a IDE interface. MAN3184MC-1 Fujitsu 18GB 10000RPM Ultra 160 SCSI 3.5-inch Hard Drive.
All information about the Hitachi IC35L180AVV207-1 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Hitachi IC35L180AVV207-1 Technical Details:
- Hard Disk Model: HITACHI IC35L180AVV207
- Disk Family: Deskstar 180GXP
- Form Factor: 3.5″
- Capacity: 180 GB (180 x 1 000 000 000 bytes)
- Number Of Disks: 3
- Number Of Heads: 6
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Ultra-ATA/100
- Buffer-Host Max. Rate: 100 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 8.5 ms
- Track To Track Seek Time: 1.1 ms
- Full Stroke Seek Time: 15 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 146.0 mm (5.75 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 640 grams (1.41 pounds)
- Acoustic (Idle): 3.1 Bel
- Acoustic (Min performance and volume): 3.2 Bel
- Acoustic (Max performance and volume): 3.4 Bel
- Required Power For Spinup: 2600 mA
- Power Required (Seek): 6.7 W
- Power Required (Idle): 5.4 W
- Power Required (Standby): 1.0 W
- Manufacturer: Hitachi Global Storage Technologies
Hitachi IC35L180AVV207-1 Hard Drives:
- IC35L180AVV207-1, PN 08K1874, MLC H69205, Hitachi 180GB IDE 3.5″ Hard Drive
- IC35L180AVV207-1, PN 07N9216, MLC H69205, Hitachi 180GB IDE 3.5″ Hard Drive
- IC35L180AVV207-1, PN 08K1875, MLC H69205, Hitachi 180GB IDE 3.5″ Hard Drive
- IC35L180AVV207-1, PN 07N9216, MLC H69404, Hitachi 185.2GB IDE 3.5″ Hard Drive
Hitachi IC35L180AVV207-1 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Hitachi IC35L180AVV207-1 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Hitachi IC35L180AVV207-1 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple Main Controller IC Number revisions:
66P5192, 47P3600, etc.
Multiple Sticker Number revisions:
08K2594 H71468_, 07N9198 H69056_, 07N9197 H69056_, etc.
