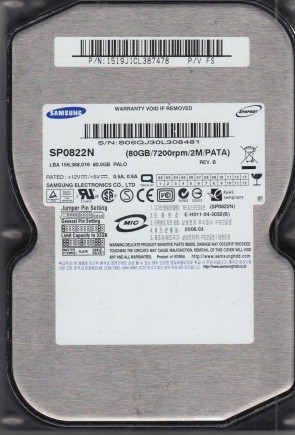

SP0822N Samsung 3.5″ hard drive with a storage capacity of 80GB and featuring a IDE interface. SP0822N Samsung 80GB 7200RPM ATA-133 3.5-inch Hard Drive.
All information about the Samsung SP0822N hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Samsung SP0822N Technical Details:
- Hard Disk Model: SAMSUNG SP0822N
- Disk Family: SpinPoint P80
- Form Factor: 3.5″
- Capacity: 80 GB (80 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Ultra-ATA/133
- Buffer-Host Max. Rate: 133 MB/seconds
- Buffer Size: 2048 KB
- Drive Ready Time (typical): 7 seconds
- Average Seek Time: 8.9 ms
- Track To Track Seek Time: 0.8 ms
- Full Stroke Seek Time: 18 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 146.05 mm (5.75 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 635 grams (1.40 pounds)
- Acoustic (Idle): 2.7 Bel
- Acoustic (Min performance and volume): 2.8 Bel
- Acoustic (Max performance and volume): 2.8 Bel
- Required Power For Spinup: 2250 mA
- Power Required (Seek): 8.8 W
- Power Required (Idle): 7.2 W
- Power Required (Standby): 0.5 W
- Manufacturer: Samsung
Samsung SP0822N Hard Drives:
- SP0822N, SP0822N, FW WA100-34, P/V FS, Samsung 80GB IDE 3.5″ Hard Drive
Samsung SP0822N Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Samsung SP0822N Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Samsung SP0822N Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
BF41-00087A, etc.
