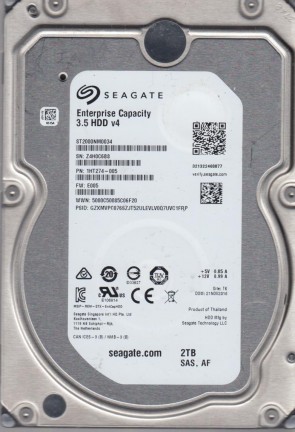

Seagate ST2000NM0034 3.5″ hard drive with a storage capacity of 2 TB and featuring a SAS interface.
All information about the Seagate ST2000NM0034 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Seagate ST2000NM0034 Technical Details:
- Hard Disk Model: SEAGATE ST2000NM0034
- Disk Family: Enterprise Capacity 3.5 HDD v4
- Form Factor: 3.5″
- Capacity: 2 TB (2 x 1 000 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: SAS
- Buffer-Host Max. Rate: 1200 MB/seconds
- Buffer Size: 131072 KB
- Width: 101.85 mm (3.98 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.02 inch)
- Weight: 605 grams (1.33 pounds)
- Power Required (Seek): 8.93 W
- Power Required (Idle): 4.84 W
- Manufacturer: Seagate Technology
Seagate ST2000NM0034 Hard Drives:
- ST2000NM0034, Z4H, TK, PN 1HT274-005, FW E005, Seagate 2TB SAS 3.5″ Hard Drive
Seagate ST2000NM0034 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST2000NM0034 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST2000NM0034 hard drive experience is a burned circuit board (PCB). Therefore, if you need to replace the PCB, be sure to match the “PCB Number” of the current board, such as 100764666 REV B, etc.
