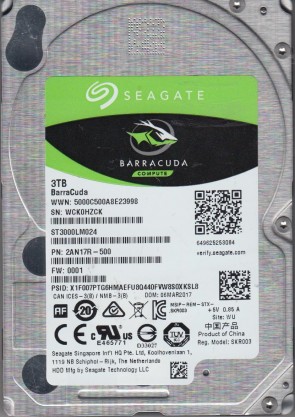

ST3000LM024 Seagate 2.5″ hard drive with a storage capacity of 3TB and featuring a SATA interface. ST3000LM024 Seagate BarraCuda 3TB 5400RPM SATA 6Gb/s 128MB Cache 2.5-inch Hard Drive.
All information about the Seagate ST3000LM024 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST3000LM024 Technical Details:
- Hard Disk Model: SEAGATE ST3000LM024
- Disk Family: Laptop HDD
- Form Factor: 2.5″
- Capacity: 3 TB (3 x 1 000 000 000 000 bytes)
- Number Of Disks: 3
- Number Of Heads: 6
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 131072 KB
- Drive Ready Time (typical): 7.5 seconds
- Average Seek Time: 14 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100.35 mm (3.95 inch)
- Height: 15 mm (0.59 inch)
- Weight: 190 grams (0.42 pounds)
- Required Power For Spinup: 1200 mA
- Power Required (Seek): 2.1 W
- Power Required (Idle): 1.9 W
- Power Required (Standby): 0.18 W
- Manufacturer: Seagate Technology
Seagate ST3000LM024 Hard Drives:
- ST3000LM024, WCK, WU, PN 2AN17R-500, FW 0001, Seagate 3TB SATA 2.5″ Hard Drive
Seagate ST3000LM024 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST3000LM024 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST3000LM024 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100794976, etc.
