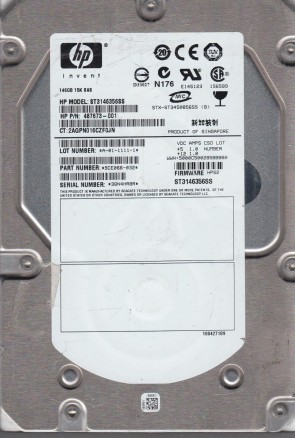

ST3146356SS Seagate 3.5″ hard drive with a storage capacity of 146GB and featuring a SAS interface. ST3146356SS Seagate Cheetah 15K.6 146GB 15000RPM SAS 3Gb/s 16MB Cache 3.5-inch Hard Disk Drive.
All information about the Seagate ST3146356SS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST3146356SS Technical Details:
- Hard Disk Model: SEAGATE ST3146356SS
- Disk Family: Cheetah 15K.6 146356
- Form Factor: 3.5″
- Capacity: 146.3 GB (146.3 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 3
- Rotational Speed: 15000 RPM
- Rotation Time: 4.00 ms
- Average Rotational Latency: 2.00 ms
- Disk Interface: SAS
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 16384 KB
- Average Seek Time: 3.4 ms
- Track To Track Seek Time: 0.2 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 146.05 mm (5.75 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 674 grams (1.49 pounds)
- Acoustic (Idle): 2.7 Bel
- Acoustic (Min performance and volume): 2.9 Bel
- Acoustic (Max performance and volume): 2.9 Bel
- Required Power For Spinup: 2800 mA
- Power Required (Seek): 12.8 W
- Power Required (Idle): 7.20 W
- Power Required (Standby): 0.80 W
- Manufacturer: Seagate Technology
Seagate ST3146356SS Hard Drives:
- ST3146356SS, 3QN, PN 9CE066-032, FW HPS2, HP 146GB SAS 3.5″ Hard Drive
- ST3146356SS, 3QN, PN 9CE066-050, FW HS09, Dell 146GB SAS 3.5″ Hard Drive
- ST3146356SS, 3QN, PN 9CE066-035, FW HPD5, HP 146GB SAS 3.5″ Hard Drive
- ST3146356SS, 3QN, AMKSPR, PN 9CE066-007, FW 0007, Seagate 146GB SAS 3.5″ Hard Drive
- ST3146356SS, 3QN, AMKSPR, PN 9CE066-006, FW 0006, Seagate 146GB SAS 3.5″ Hard Drive
- ST3146356SS, 3QN, AMKSPR, PN 9CE066-002, FW 0003, Seagate 146GB SAS 3.5″ Hard Drive
Seagate ST3146356SS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST3146356SS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST3146356SS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100507792, 100480689, etc.
