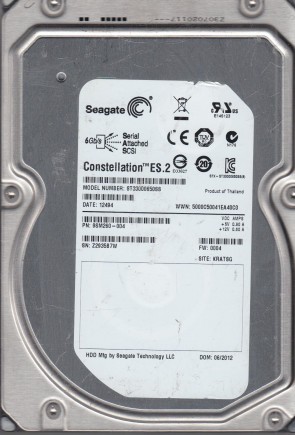

ST33000650SS Seagate 3.5″ hard drive with a storage capacity of 3TB and featuring a SAS interface. ST33000650SS Seagate Constellation ES.2 3TB 7200RPM SAS 6Gbps 64MB Cache 3.5-inch Hard Drive.
All information about the Seagate ST33000650SS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST33000650SS Technical Details:
- Hard Disk Model: SEAGATE ST33000650SS
- Disk Family: Constellation ES.2 33000650
- Form Factor: 3.5″
- Capacity: 3 TB (3 x 1 000 000 000 000 bytes)
- Number Of Disks: 5
- Number Of Heads: 10
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: SAS
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 65536 KB
- Average Seek Time: 8.5 ms
- Track To Track Seek Time: 0.7 ms
- Full Stroke Seek Time: 15.7 ms
- Width: 101.85 mm (4.01 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 700 grams (1.54 pounds)
- Acoustic (Idle): 2.7 Bel
- Acoustic (Min performance and volume): 2.9 Bel
- Acoustic (Max performance and volume): 2.9 Bel
- Required Power For Spinup: 2800 mA
- Power Required (Seek): 12.8 W
- Power Required (Idle): 7.20 W
- Power Required (Standby): 0.80 W
- Manufacturer: Seagate Technology
Seagate ST33000650SS Hard Drives:
- ST33000650SS, Z29, KRATSG, PN 9SM260-004, FW 0004, Seagate 3TB SAS 3.5″ Hard Drive
- ST33000650SS, Z29, KRATSG, PN 9SM260-157, FW RN08, Dell 3TB SAS 3.5″ Hard Drive
- ST33000650SS, Z29, TH, PN 9SM260-157, FW RN08, Dell 3TB SAS 3.5″ Hard Drive
- ST33000650SS, Z29, KRATSG, PN 9SM260-150, FW RS0F, Dell 3TB SAS 3.5″ Hard Drive
- ST33000650SS, Z29, KRATSG, PN 9SM260-035, FW HPD1, HP 3TB SAS 3.5″ Hard Drive
- ST33000650SS, Z29, KRATSG, PN 9SM260-880, FW 0005, Seagate 3TB SAS 3.5″ Hard Drive
- ST33000650SS, Z29, PN 9SM260-157, FW RN08, Dell 3TB SAS 3.5″ Hard Drive
Seagate ST33000650SS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST33000650SS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST33000650SS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100608305, etc.
