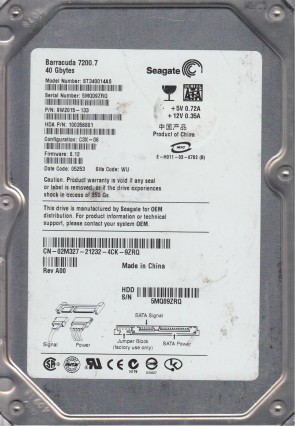

ST340014A Seagate 3.5″ hard drive with a storage capacity of 40GB and featuring a IDE interface. ST340014AS Seagate Barracuda 7200.7 40GB 7200RPM SATA 1.5Gb/s 2MB Cache 3.5-inch Hard Drive.
All information about the Seagate ST340014A hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST340014A Technical Details:
- Hard Disk Model: SEAGATE ST340014A
- Disk Family: Barracuda 7200.7 40014
- Form Factor: 3.5″
- Capacity: 40 GB (40 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 1
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Ultra-ATA/100
- Buffer-Host Max. Rate: 100 MB/seconds
- Buffer Size: 2048 KB
- Drive Ready Time (typical): 10 seconds
- Average Seek Time: 8.5 ms
- Width: 101.85 mm (4.01 inch)
- Depth: 146.56 mm (5.77 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 544 grams (1.20 pounds)
- Acoustic (Idle): 2.7 Bel
- Acoustic (Min performance and volume): 2.9 Bel
- Acoustic (Max performance and volume): 2.9 Bel
- Required Power For Spinup: 2800 mA
- Power Required (Seek): 12.8 W
- Power Required (Idle): 7.20 W
- Power Required (Standby): 0.80 W
- Manufacturer: Seagate Technology
Seagate ST340014A Hard Drives:
- ST340014AS, 5MQ, WU, PN 9W2015-133, FW 8.12, Seagate 40GB SATA 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-006, FW 8.01, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-076, FW 3.10, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-001, FW 3.04, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 4JX, TK, PN 9W2005-006, FW 8.01, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-030, FW 3.06, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-301, FW 3.06, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 3JX, AMK, PN 9W2005-006, FW 8.01, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014AS, 4MQ, TK, PN 9W2015-630, FW 3.43, Seagate 40GB SATA 3.5″ Hard Drive
- ST340014A, 5JV, WU, PN 9W2005-365, FW 8.54, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-031, FW 8.01, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014AS, 5MQ, WU, PN 9W2015-131, FW 3.43, Seagate 40GB SATA 3.5″ Hard Drive
- ST340014AS, 5JX, WU, PN 9W2015-130, FW 3.20, Seagate 40GB SATA 3.5″ Hard Drive
- ST340014A, 3JX, AMK, PN 9W2005-031, FW 8.01, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014AS, 4MQ, TK, PN 9W2015-131, FW 3.43, Seagate 40GB SATA 3.5″ Hard Drive
- ST340014AS, 5MQ, WU, PN 9W2015-630, FW 3.43, Seagate 40GB SATA 3.5″ Hard Drive
- ST340014A, 3JX, AMK, PN 9W2005-311, FW 3.06, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-004, FW 3.04, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-372, FW 8.01, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-002, FW 3.06, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014AS, 5MQ, WU, PN 9W2015-633, FW 8.12, Seagate 40GB SATA 3.5″ Hard Drive
- ST340014A, 3JX, AMK, PN 9W2005-033, FW 8.16, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-176, FW 8.10, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014A, 5JX, WU, PN 9W2005-033, FW 8.16, Seagate 40GB IDE 3.5″ Hard Drive
- ST340014AS, 3JX, AMK, PN 9W2015-130, FW 3.20, Seagate 40GB SATA 3.5″ Hard Drive
Seagate ST340014A Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST340014A Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST340014A Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100306336, 100331803, 100255564, 100277705, 100277699, 100291893, 100306042, etc.
