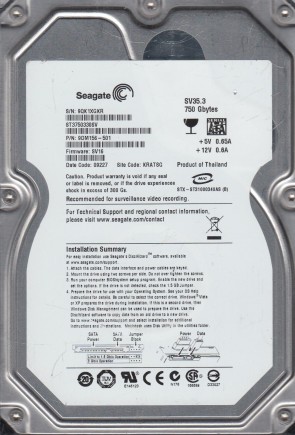

ST3750330SV Seagate 3.5″ hard drive with a storage capacity of 750 GB and featuring a SATA interface. ST3750330SV SEAGATE 3.5″ 750 GB Serial-ATA/300 SV35.3 750330 Hard Drive.
All information about the Seagate ST3750330SV hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Seagate ST3750330SV Technical Details:
- Hard Disk Model: SEAGATE ST3750330SV
- Disk Family: SV35.3 750330
- Form Factor: 3.5″
- Capacity: 750 GB (750 x 1 000 000 000 bytes)
- Number Of Disks: 3
- Number Of Heads: 6
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 32768 KB
- Drive Ready Time (typical): 16 seconds
- Average Seek Time: 14 ms
- Track To Track Seek Time: 1 ms
- Width: 101.6 mm (3.98 inch)
- Depth: 146.99 mm (5.75 inch)
- Height: 26.11 mm (1.02 inch)
- Weight: 630 grams (1.39 pounds)
- Acoustic (Idle): 2.1 Bel
- Acoustic (Min performance and volume): 2.3 Bel
- Acoustic (Max performance and volume): 2.3 Bel
- Required Power For Spinup: 2000 mA
- Power Required (Seek): 5.8 W
- Power Required (Idle): 4.50 W
- Manufacturer: Seagate Technology
Seagate ST3750330SV Hard Drives:
- ST3750330SV SEAGATE 3.5″ 750 GB Serial-ATA/300 SV35.3 750330 Hard Drive.
Seagate ST3750330SV Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST3750330SV Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST3750330SV hard drive experience is a burned circuit board (PCB). Therefore, if you need to replace the PCB, be sure to match the “PCB Number” of the current board, such as 100466824, etc.
