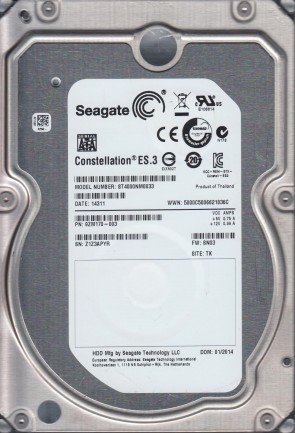

ST4000NM0033 Seagate 3.5″ hard drive with a storage capacity of 4TB and featuring a SATA interface. ST4000NM0033 Seagate Constellation ES.3 4TB 7200RPM SATA 6Gb/S 128MB Cache 3.5-inch Hard Drive.
All information about the Seagate ST4000NM0033 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST4000NM0033 Technical Details:
- Hard Disk Model: SEAGATE ST4000NM0033
- Disk Family: Constellation ES.3 4000NM0033
- Form Factor: 3.5″
- Capacity: 4 TB (4 x 1 000 000 000 000 bytes)
- Number Of Disks: 5
- Number Of Heads: 10
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 131072 KB
- Drive Ready Time (typical): 16 seconds
- Width: 101.85 mm (4.01 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 700 grams (1.54 pounds)
- Acoustic (Idle): 2.7 Bel
- Acoustic (Min performance and volume): 2.9 Bel
- Acoustic (Max performance and volume): 2.9 Bel
- Required Power For Spinup: 2800 mA
- Power Required (Seek): 12.8 W
- Power Required (Idle): 7.20 W
- Power Required (Standby): 0.80 W
- Manufacturer: Seagate Technology
Seagate ST4000NM0033 Hard Drives:
- ST4000NM0033, Z1Z, TK, PN 9ZM170-003, FW SN03, Seagate 4TB SATA 3.5″ Hard Drive
- ST4000NM0033, Z1Z, TK, PN 9ZM170-004, FW SN04, Seagate 4TB SATA 3.5″ Hard Drive
- ST4000NM0033, Z1Z, TK, PN 9ZM170-001, FW 0001, Seagate 4TB SATA 3.5″ Hard Drive
Seagate ST4000NM0033 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST4000NM0033 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST4000NM0033 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100706008, etc.
