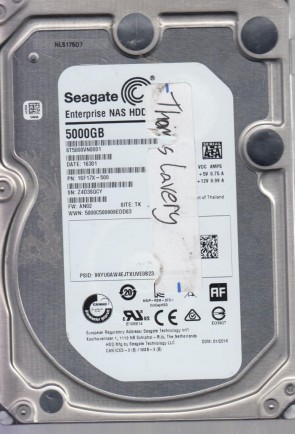

Seagate ST5000VN0001 3.5″ hard drive with a storage capacity of 5 TB and featuring a SATA interface.
All information about the Seagate ST5000VN0001 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Seagate ST5000VN0001 Technical Details:
- Hard Disk Model: SEAGATE ST5000VN0001
- Disk Family: Enterprise NAS HDD
- Form Factor: 3.5″
- Capacity: 5 TB (5 x 1 000 000 000 000 bytes)
- Number Of Disks: 5
- Number Of Heads: 10
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 131072 KB
- Drive Ready Time (typical): 26 seconds
- Average Seek Time: 8.5 ms
- Track To Track Seek Time: 1 ms
- Width: 101.85 mm (3.98 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.02 inch)
- Weight: 780 grams (1.72 pounds)
- Acoustic (Idle): 2.7 Bel
- Acoustic (Min performance and volume): 2.9 Bel
- Acoustic (Max performance and volume): 2.9 Bel
- Required Power For Spinup: 2800 mA
- Power Required (Seek): 12.8 W
- Power Required (Idle): 7.20 W
- Power Required (Standby): 0.80 W
- Manufacturer: Seagate Technology
Seagate ST5000VN0001 Hard Drives:
- Seagate ST5000VN0001 IronWolf 5 TB 3.5″ Internal Hard Drive Serial ATA-600 5900 RPM 128 MB Buffer hard drive;
Seagate ST5000VN0001 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST5000VN0001 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST5000VN0001 hard drive experience is a burned circuit board (PCB). Therefore, if you need to replace the PCB, be sure to match the “PCB Number” of the current board, such as 100764669 REV B, etc.
