Seagate ST9120410AS 2.5″ hard drive with a storage capacity of 120GB and featuring a SATA interface.

All information about the Seagate ST9120410AS hard disk drive: technical parameters, failure symptoms, HDD PCB repair and recommended retailers.

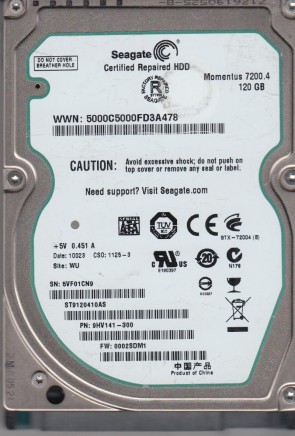

Seagate ST9120410AS

Seagate ST9120410AS Technical Details:

Manufacturer:
Seagate
Hard Disk Model:
ST9120410AS
Disk Family:
Enterprise 2.5″ Series
Form Factor:
2.5″
Capacity:
120 GB (120,000,000,000 bytes)
Formatted Capacity:
Approximately 111 GB
Rotational Speed:
5400 RPM
Average Seek Time:
12.0 ms (read) / 13.0 ms (write)
Disk Interface:
Serial ATA-150 (SATA 1.5 Gb/s)
Buffer Size:
8192 KB (8 MB)
External Transfer Rate:
150 MB/s
Mean Time Between Failures (MTBF):
500,000 hours

Seagate ST9120410AS Hard Drives:

  • ST9120410AS, 5VF, WU, PN 9HV141-300, FW 0002SDM1, Seagate 120GB SATA 2.5″ Hard Drive

Seagate ST9120410AS Failure Symptoms:

  • Electrical Failure Symptoms:
    Drive is powered, but shows no sign of function;
    Disk knocking as the motor fails to spin;
    Clicking sound as the heads search or initialize;
  • Mechanical Failure Symptoms:
    Clicking, grinding sounds;
    Completely quiet due to “motor freeze”;
    “music” tone as the disk is powered up;
  • Logical Failure Examples:
    Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
  • Firmware Failure Symptoms:
    drive powers up, but is not recognised by the computer;
    Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
    Drive freezes during booting up;
  • Bad Platter Area Symptoms:
    Hard disk still accessible but appear to “hang” or “sluggish”;
    Constant Cyclic Redundancy (CRC) errors;
    Unable to access folders or files which could be seen;
  • Complex Failure Model

Seagate ST9120410AS HDD PCB Repair:

When it comes to data recovery one of the most common problems Seagate ST9120410AS hard drive experience is a burned circuit board (PCB). Therefore, if you need to replace the PCB, be sure to match the “PCB Number” of the current board, such as 100536286 REV E, etc.
