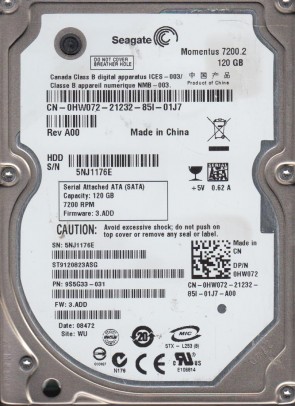

ST9120823AS Seagate 2.5″ hard drive with a storage capacity of 120GB and featuring a SATA interface. ST9120823AS Seagate Momentus 120GB 7200RPM SATA 3GB/s 8MB Cache 2.5-inch Hard Drive.
All information about the Seagate ST9120823AS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST9120823AS Technical Details:
- Hard Disk Model: SEAGATE ST9120823AS
- Disk Family: Momentus 7200.2 120823
- Form Factor: 2.5″
- Capacity: 120 GB (120 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 3
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 11 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100.5 mm (3.96 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 115 grams (0.25 pounds)
- Acoustic (Idle): 2.3 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 3.0 Bel
- Required Power For Spinup: 1200 mA
- Power Required (Seek): 2.4 W
- Power Required (Idle): 1.2 W
- Power Required (Standby): 0.36 W
- Manufacturer: Seagate Technology
Seagate ST9120823AS Hard Drives:
- ST9120823ASG, 5NJ, WU, PN 9S5G33-031, FW 3.ADD, Seagate 120GB SATA 2.5″ Hard Drive
- Seagate ST9120823ASG, 7200RPM, 120GB SATA 2.5″ HDD
- ST9120823AS, 5NK, WU, PN 9S5133-501, FW 3.AAB, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120823AS, 5NJ, WU, PN 9S5133-020, FW 3.BHC, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120823ASG, 5NJ, WU, PN 9S5G33-032, FW 3.ADE, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120823AS, 5NJ, WU, PN 9S5133-030, FW 3.ADB, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120823AS, 5NJ, WU, PN 9S5133-031, FW 3.ADC, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120823ASG, 5NJ, WU, PN 9S5G33-030, FW 3.ADD, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120823AS, 5NJ, WU, PN 9S5133-021, FW 3.AHE, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120823AS, 5NJ, WU, PN 9S5133-033, FW 3.ADC, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120823AS, 5NJ, WU, PN 9S5133-501, FW 3.AAB, Seagate 120GB SATA 2.5″ Hard Drive
Seagate ST9120823AS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST9120823AS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST9120823AS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100430580, etc.
