Seagate ST9320320AS

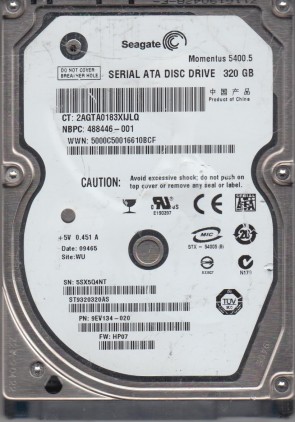

ST9320320AS Seagate 2.5″ hard drive with a storage capacity of 320GB and featuring a SATA interface. ST9320320AS Seagate Momentus 5400.5 320GB 5400RPM SATA 3Gb/s 8MB Cache 2.5-inch Hard Drive.

All information about the Seagate ST9320320AS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Seagate ST9320320AS Technical Details:

• Hard Disk Model: SEAGATE ST9320320AS
• Disk Family: Momentus 5400.5 320320
• Form Factor: 2.5″
• Capacity: 320 GB (320 x 1 000 000 000 bytes)
• Number Of Disks: 2
• Number Of Heads: 4
• Rotational Speed: 5400 RPM
• Rotation Time: 11.11 ms
• Average Rotational Latency: 5.56 ms
• Disk Interface: Serial-ATA/300
• Buffer-Host Max. Rate: 300 MB/seconds
• Buffer Size: 8192 KB
• Width: 69.85 mm (2.75 inch)
• Depth: 100.5 mm (3.96 inch)
• Height: 9.5 mm (0.37 inch)
• Weight: 98.8 grams (0.22 pounds)
• Acoustic (Idle): 2.3 Bel
• Acoustic (Min performance and volume): 2.5 Bel
• Acoustic (Max performance and volume): 3.0 Bel
• Required Power For Spinup: 1200 mA
• Power Required (Seek): 2.4 W
• Power Required (Idle): 1.2 W
• Power Required (Standby): 0.36 W
• Manufacturer: Seagate Technology

Seagate ST9320320AS Hard Drives:

• ST9320320AS, 5SX, WU, PN 9EV134-020, FW HP07, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-032, FW DE06, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-141, FW SD57, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-500, FW SD03, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-566, FW 0302, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-336, FW SD03, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-030, FW DE04, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-285, FW 0303, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-150, FW SD56, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-031, FW DE05, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-188, FW 0303, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-300, FW 0303, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-300, FW SD03, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-566, FW BS05, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-566, FW BS04, Seagate 320GB SATA 2.5″ Hard Drive
• ST9320320AS, 5SX, WU, PN 9EV134-566, FW BS03, Seagate 320GB SATA 2.5″ Hard Drive

Seagate ST9320320AS Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Seagate ST9320320AS Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Seagate ST9320320AS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
100504151, 100507727, 100513491, 100507727, etc.
