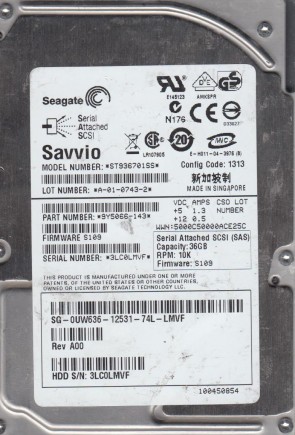

ST936701SS Seagate 2.5″ hard drive with a storage capacity of 36GB and featuring a SAS interface. ST936701SS Seagate Savvio 36GB 10000RPM SAS 3GB/s 8MB Cache 2.5-inch Hard Drive.
All information about the Seagate ST936701SS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST936701SS Technical Details:
- Hard Disk Model: SEAGATE ST936701SS
- Disk Family: Savvio 36701
- Form Factor: 2.5″
- Capacity: 36.7 GB (36.7 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 10000 RPM
- Rotation Time: 6.00 ms
- Average Rotational Latency: 3.00 ms
- Disk Interface: SAS
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 4.7 ms
- Track To Track Seek Time: 0.65 ms
- Width: 70.1 mm (2.76 inch)
- Depth: 111.7 mm (4.40 inch)
- Height: 15 mm (0.59 inch)
- Weight: 210 grams (0.46 pounds)
- Acoustic (Idle): 2.3 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 3.0 Bel
- Required Power For Spinup: 1200 mA
- Power Required (Seek): 2.4 W
- Power Required (Idle): 1.2 W
- Power Required (Standby): 0.36 W
- Manufacturer: Seagate Technology
Seagate ST936701SS Hard Drives:
- ST936701SS, 3LC, AMKSPR, PN 9Y5066-143, FW S109, Seagate 36GB SAS 2.5″ Hard Drive
- ST936701SS, 3LC, AMK, PN 9Y5066-103, FW 004, Seagate 36GB SAS 2.5″ Hard Drive
Seagate ST936701SS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST936701SS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST936701SS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100360277, etc.
