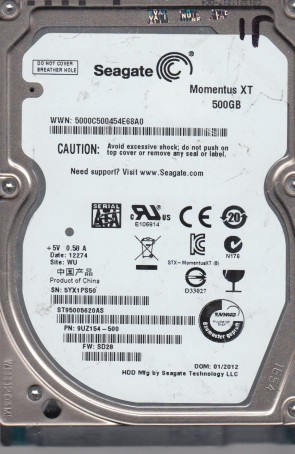

ST95005620AS Seagate 2.5″ hard drive with a storage capacity of 500GB and featuring a SATA interface. ST95005620AS Seagate Momentus XT 500GB 7200RPM SATA 3GB/s 32MB Cache 8GB SLC NAND SSD 2.5-inch Hybrid Hard Drive.
All information about the Seagate ST95005620AS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST95005620AS Technical Details:
- Hard Disk Model: SEAGATE ST95005620AS
- Disk Family: Momentus XT 5005620
- Form Factor: 2.5″
- Capacity: 500 GB (500 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 32768 KB
- Drive Ready Time (typical): 4.5 seconds
- Average Seek Time: 11 ms
- Track To Track Seek Time: 1.5 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100.35 mm (3.95 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 110 grams (0.24 pounds)
- Acoustic (Idle): 2.3 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 3.0 Bel
- Required Power For Spinup: 1200 mA
- Power Required (Seek): 2.4 W
- Power Required (Idle): 1.2 W
- Power Required (Standby): 0.36 W
- Manufacturer: Seagate Technology
Seagate ST95005620AS Hard Drives:
- ST95005620AS, 5YX, WU, PN 9UZ154-500, FW SD28, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-285, FW SD22, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-032, FW DEM4, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-151, FW TD25, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-500, FW SD24, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-141, FW SD27, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-140, FW SD24, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-031, FW DEM3, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-152, FW TD27, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-286, FW SD24, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-500, FW SD26, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-500, FW SD23, Seagate 500GB SATA 2.5″ Hard Drive
- Seagate ST95005620AS, 7200RPM, 3.0Gp/s, 500GB SATA 2.5″ HDD
- ST95005620AS, 5YX, WU, PN 9UZ154-030, FW DEM1, Seagate 500GB SATA 2.5″ Hard Drive
- ST95005620AS, 5YX, WU, PN 9UZ154-150, FW TD24, Seagate 500GB SATA 2.5″ Hard Drive
Seagate ST95005620AS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST95005620AS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST95005620AS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100612797, etc.
