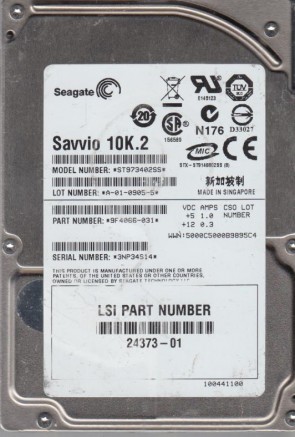

ST973402SS Seagate 2.5″ hard drive with a storage capacity of 73GB and featuring a SAS interface. ST973402SS Seagate Savvio 73GB 10000RPM SAS 3Gb/s 16MB Cache 2.5-inch Hard Drive.
All information about the Seagate ST973402SS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST973402SS Technical Details:
- Hard Disk Model: SEAGATE ST973402SS
- Disk Family: Savvio 10K.2 73402
- Form Factor: 2.5″
- Capacity: 73 GB (73 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 10000 RPM
- Rotation Time: 6.00 ms
- Average Rotational Latency: 3.00 ms
- Disk Interface: SAS
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 16384 KB
- Average Seek Time: 4.4 ms
- Track To Track Seek Time: 0.4 ms
- Width: 70.1 mm (2.76 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 14.8 mm (0.58 inch)
- Weight: 210 grams (0.46 pounds)
- Acoustic (Idle): 2.3 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 3.0 Bel
- Required Power For Spinup: 1200 mA
- Power Required (Seek): 2.4 W
- Power Required (Idle): 1.2 W
- Power Required (Standby): 0.36 W
- Manufacturer: Seagate Technology
Seagate ST973402SS Hard Drives:
- ST973402SS, 3NP, AMKSPR, PN 9F4066-031, FW MS00, Seagate 73GB SAS 2.5″ Hard Drive
- ST973402SS, 3NP, PN 9F4066-043, FW S229, Dell 73GB SAS 2.5″ Hard Drive
- ST973402SS, 3NP, PN 9F4066-042, FW S207, Seagate 73GB SAS 2.5″ Hard Drive
- ST973402SS, 3NP, PN 9F4066-043, FW S229, Seagate 73GB SAS 2.5″ Hard Drive
- ST973402SS, 3NP, AMKSPR, PN 9F4066-003, FW 0003, Seagate 73.4GB SAS 2.5″ Hard Drive
Seagate ST973402SS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST973402SS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST973402SS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100419609, etc.
