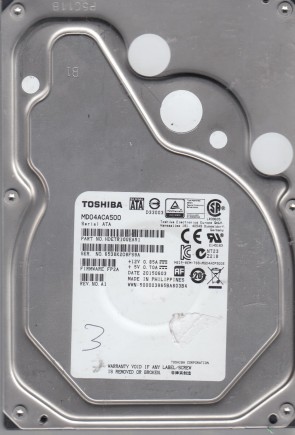

MD04ACA500 Toshiba 3.5″ hard drive with a storage capacity of 5TB and featuring a SATA interface. MD04ACA500 Toshiba 5TB 7200RPM SATA 6GB/s 64MB Cache 3.5-inch Hard Drive.
All information about the Toshiba MD04ACA500 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Toshiba MD04ACA500 Technical Details:
- Hard Disk Model: TOSHIBA MD04ACA500
- Disk Family: MD04ACA
- Form Factor: 2.5″
- Capacity: 5 TB (5 x 1 000 000 000 000 bytes)
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 131072 KB
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 720 grams (1.59 pounds)
- Required Power For Spinup: 940 mA
- Power Required (Seek): 2.7 W
- Power Required (Idle): 1.0 W
- Power Required (Standby): 0.25 W
- Manufacturer: Toshiba Corp., Storage Device Division
Toshiba MD04ACA500 Hard Drives:
- MD04ACA500, FP2A, HDETR10GEA51, Toshiba 5TB SATA 3.5″ Hard Drive
- MD04ACA500, FP1U, HDETR10GPA51, Toshiba 5TB SATA 3.5″ Hard Drive
- MD04ACA500, FP1A, HDETR10GEA51, Toshiba 5TB SATA 3.5″ Hard Drive
Toshiba MD04ACA500 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Toshiba MD04ACA500 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Toshiba MD04ACA500 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
G3626A, etc.
