MK1517GAP Toshiba 2.5″ hard drive with a storage capacity of 10GB and featuring a IDE interface. MK1517GAP Toshiba MK1517GAP 15 GB 2.5 Plug-in Module Hard Drive IDE Ultra ATA/100 (ATA-6) 4200 rpm 2 MB Buffer.
All information about the Toshiba MK1517GAP hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Toshiba MK1517GAP Technical Details:
- Hard Disk Model: TOSHIBA MK1517GAP
- Disk Family: MK-1517GAP
- Form Factor: 2.5″
- Capacity: 15.1 GB (15.1 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 4200 RPM
- Rotation Time: 14.29 ms
- Average Rotational Latency: 7.14 ms
- Drive Ready Time (typical): 4 seconds
- Average Seek Time: 13 ms
- Track To Track Seek Time: 3 ms
- Full Stroke Seek Time: 24 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 94 grams (0.21 pounds)
- Required Power For Spinup: 940 mA
- Power Required (Seek): 2.7 W
- Power Required (Idle): 1.0 W
- Power Required (Standby): 0.25 W
- Manufacturer: Toshiba Corp., Storage Device Division
Toshiba MK1517GAP Hard Drives:

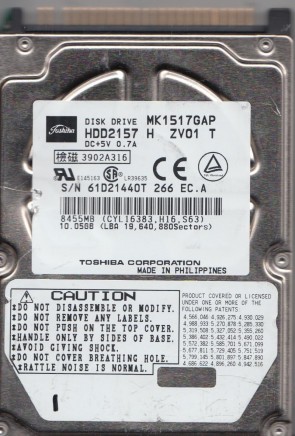

- MK1517GAP, A0/A1.06H, HDD2157 H ZV01 T, Toshiba 10.1GB IDE 2.5″ Hard Drive
- MK1517GAP, C0/A1.06H, HDD2157 G ZF01 T, Toshiba 15GB IDE 2.5″ Hard Drive
- MK1517GAP, A0/A1.05H, HDD2157 D ZV01 T, Toshiba 10GB IDE 2.5″ Hard Drive
- MK1517GAP, A0/A1.03H, HDD2157 S ZF01 T, Toshiba 15.1GB IDE 2.5″ Hard Drive
- MK1517GAP, C0/A1.06H, HDD2157 G ZF01 T, Toshiba 15.1GB IDE 2.5″ Hard Drive
Toshiba MK1517GAP Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Toshiba MK1517GAP Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Toshiba MK1517GAP Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
B36021752017-B, etc.
