MQ02ABD100H Toshiba 2.5″ hard drive with a storage capacity of 1TB and featuring a SATA interface. MQ02ABD100H Toshiba 1TB 5400RPM 64mb Cache 2.5-Inch SATA 6Gb/s Flash Memory Size 8Gib Solid-State Hybrid Drives.
All information about the Toshiba MQ02ABD100H hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Toshiba MQ02ABD100H Technical Details:
- Hard Disk Model: TOSHIBA MQ02ABD100H
- Disk Family: MQ-02ABD100H
- Form Factor: 2.5″
- Capacity: 1 TB (1 x 1 000 000 000 000 bytes)
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 65536 KB
- Width: 69.85 mm (2.75 inch)
- Depth: 100.45 mm (3.95 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 117 grams (0.26 pounds)
- Required Power For Spinup: 940 mA
- Power Required (Seek): 2.7 W
- Power Required (Idle): 1.0 W
- Power Required (Standby): 0.25 W
- Manufacturer: Toshiba Corp., Storage Device Division
Toshiba MQ02ABD100H Hard Drives:

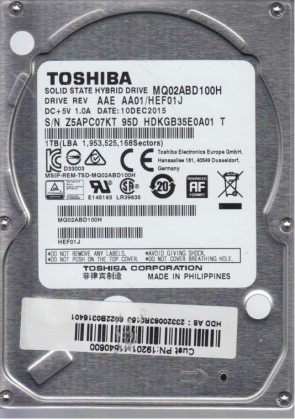

- MQ02ABD100H, AA01/HEF01J, HDKGB35E0A01 T, Toshiba 1TB SATA 2.5″ Hard Drive
- MQ02ABD100H, AA00/HEF01D, HDKGB35D0A02 T, Toshiba 1TB SATA 2.5″ Hard Drive
- MQ02ABD100H, AA00/HEFD2C, HDKGB35H2A01 T, Toshiba 1TB SATA 2.5″ Hard Drive
- MQ02ABD100H, AA00/HEF01C, HDKGB35H0A01 T, Toshiba 1TB SATA 2.5″ Hard Drive
Toshiba MQ02ABD100H Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Toshiba MQ02ABD100H Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Toshiba MQ02ABD100H Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
G3814A, etc.
