WD1000FYPS Western Digital 3.5″ hard drive with a storage capacity of 1TB and featuring a SATA interface. WD1000FYPS Western Digital RE2-GP 1TB 7200RPM SATA 3Gb/s 16MB Cache 3.5-inch Hard Drive.

All information about the Western Digital WD1000FYPS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Western Digital WD1000FYPS Technical Details:

  • Hard Disk Model: WDC WD1000FYPS
  • Disk Family: RE2-GP
  • Form Factor: 3.5″
  • Capacity: 1 TB (1 x 1 000 000 000 000 bytes)
  • Number Of Disks: 4
  • Number Of Heads: 8
  • Disk Interface: Serial-ATA/300
  • Buffer-Host Max. Rate: 300 MB/seconds
  • Buffer Size: 16384 KB
  • Drive Ready Time (typical): 17 seconds
  • Average Seek Time: 8.9 ms
  • Width: 101.6 mm (4.00 inch)
  • Depth: 147 mm (5.79 inch)
  • Height: 26.1 mm (1.03 inch)
  • Weight: 730 grams (1.61 pounds)
  • Acoustic (Idle): 2.4 Bel
  • Acoustic (Min performance and volume): 2.5 Bel
  • Acoustic (Max performance and volume): 2.9 Bel
  • Required Power For Spinup: 1015 mA
  • Power Required (Seek): 7.4 W
  • Power Required (Idle): 4.0 W
  • Power Required (Standby): 0.97 W
  • Manufacturer: Western Digital Corporation

Western Digital WD1000FYPS Hard Drives:

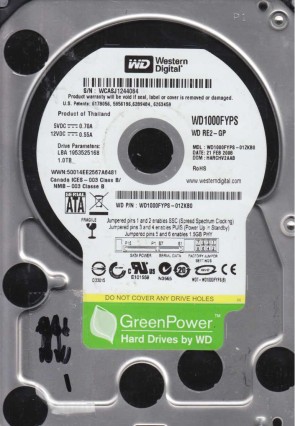

WD1000FYPS Western Digital 1TB SATA 3.5 Inch Hard Drive

  • WD1000FYPS-01ZKB0, DCM HARCHV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
  • WD1000FYPS-01ZKB1, DCM HARCHV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
  • WD1000FYPS-01ZKB0, DCM HARCHV2ABB, Western Digital 1TB SATA 3.5″ Hard Drive
  • WD1000FYPS-18ZKB0, DCM HARCHV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
  • WD1000FYPS-01ZKB0, DCM HARCNV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
  • WD1000FYPS-12ZKB2, DCM HARCHV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
  • WD1000FYPS-01ZKB1, DCM HBRCNV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
  • WD1000FYPS-01ZKB1, DCM HARCNV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive

Western Digital WD1000FYPS Failure Symptoms:

  • Electrical Failure Symptoms:
    Drive is powered, but shows no sign of function;
    Disk knocking as the motor fails to spin;
    Clicking sound as the heads search or initialize;
  • Mechanical Failure Symptoms:
    Clicking, grinding sounds;
    Completely quiet due to ” motor freeze”;
    “music” tone as the disk is powered up;
  • Logical Failure Examples:
    Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
  • Firmware Failure Symptoms:
    drive powers up, but is not recognised by the computer;
    Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
    Drive freezes during booting up;
  • Bad Platter Area Symptoms:
    Hard disk still accessible but appear to “hang” or “sluggish”;
    Constant Cyclic Redundancy (CRC) errors;
    Unable to access folders or files which could be seen;
  • Complex Failure Model

Western Digital WD1000FYPS Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Western Digital WD1000FYPS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
2060-701474-004, etc.

Multiple Model Number revisions:
WD1000FYPS-18ZKB0, WD1000FYPS-01ZKB0, WD1000FYPS-12ZKB2, WD1000FYPS-01ZKB1, etc.
