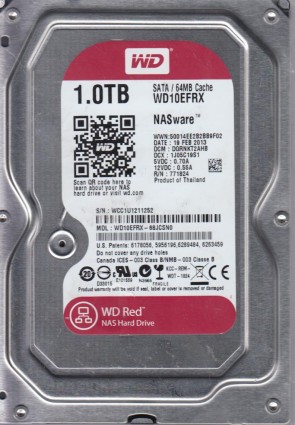

WD10EFRX Western Digital 3.5″ hard drive with a storage capacity of 1TB and featuring a SATA interface. WD10EFRX Western Digital Red 1TB 7200RPM (intellipower) SATA 6GB/s 64MB Cache 3.5-inch Internal Nas Hard Drive.
All information about the Western Digital WD10EFRX hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD10EFRX Technical Details:
- Hard Disk Model: WDC WD10EFRX
- Disk Family: Red
- Form Factor: 3.5″
- Capacity: 1 TB (1 x 1 000 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 65536 KB
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 450 grams (0.99 pounds)
- Acoustic (Idle): 2.1 Bel
- Acoustic (Min performance and volume): 2.2 Bel
- Acoustic (Max performance and volume): 2.2 Bel
- Required Power For Spinup: 1200 mA
- Power Required (Seek): 3.7 W
- Power Required (Idle): 3.2 W
- Power Required (Standby): 0.6 W
- Manufacturer: Western Digital Corporation
Western Digital WD10EFRX Hard Drives:
- WD10EFRX-68JCSN0, DCM DGRNKT2AHB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68PJCN0, DCM HHRNKT2AHB, Western Digital ?SATA 3.5″ Hard Drive
- WD10EFRX-68PJCN0, DCM HHRNNT2MHB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68PJCN0, DCM HBRNKT2MHB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM HHNCHV2CH, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM HHRCHVJAH, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM DHRCKV2AH, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM HARCKV2AH, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM HHNCKV2AH, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM HHNNNT2CGB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM DARCKV2AH, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM HHRNHT2CHB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68PJCN0, DCM DHNNKT2CEB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68FYTN0, DCM HHNNKT2CHB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68FYTN0, DCM HBNNKT2AHB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM HANNKT2MHB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68PJCN0, DCM DHNNNT2AHB, Western Digital ?SATA 3.5″ Hard Drive
- WD10EFRX-68PJCN0, DCM HBNNHT2AEB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68FYTN0, DCM DHNNKT2CHB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM DHRCKV2AG, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM DHNCHV2AH, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EFRX-68JCSN0, DCM HANCHV2AH, Western Digital 1TB SATA 3.5″ Hard Drive
Western Digital WD10EFRX Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD10EFRX Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD10EFRX Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771824-006, 2060-771945-002, 2060-771945-001, 2060-800006-001, 2060-771824-005, etc.
Multiple Model Number revisions:
WD10EFRX-68PJCN0, WD10EFRX-68FYTN0, WD10EFRX-68JCSN0, etc.
