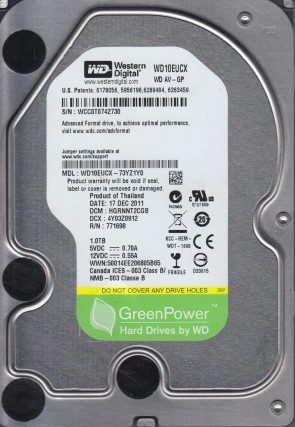

WD10EUCX Western Digital 3.5″ hard drive with a storage capacity of 1TB and featuring a SATA interface. WD10EUCX Western Digital Av-Gp 1TB 5400RPM (intellipower) SATA 6GB/s 7-Pin 16MB Cache 3.5-inch Internal Hard Drive.
All information about the Western Digital WD10EUCX hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD10EUCX Technical Details:
- Hard Disk Model: WDC WD10EUCX
- Disk Family: AV-GP
- Form Factor: 3.5″
- Capacity: 1 TB (1 x 1 000 000 000 000 bytes)
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 16384 KB
- Drive Ready Time (typical): 14.5 seconds
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 600 grams (1.32 pounds)
- Manufacturer: Western Digital Corporation
Western Digital WD10EUCX Hard Drives:
- WD10EUCX-73YZ1Y0, DCM HGRNNT2CGB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EUCX-63YZ1Y0, DCM HHRNNT2MAB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EUCX-63YZ1Y0, DCM HBRNNT2MAB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EUCX-63YZ1Y0, DCM HBRNHT2MH, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EUCX-63YZ1Y0, DCM HANNHT2MAB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EUCX-63YZ1Y0, DCM HARNNT2MAB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EUCX-63YZ1Y0, DCM HHRNHT2MHB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EUCX-63YZ1Y0, DCM HARNHT2CAB, Western Digital 1TB SATA 3.5″ Hard Drive
- WD10EUCX-63YZ1Y0, DCM HANNHT2CGB, Western Digital 1TB SATA 3.5″ Hard Drive
Western Digital WD10EUCX Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD10EUCX Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD10EUCX Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771698-004, etc.
Multiple Model Number revisions:
WD10EUCX-73YZ1Y0, WD10EUCX-63YZ1Y0, etc.
