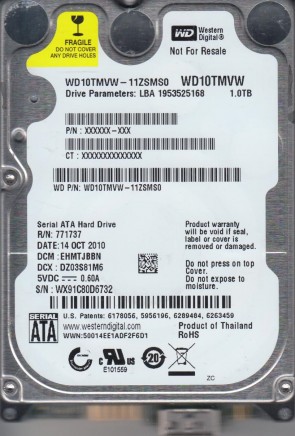

WD10TMVW Western Digital 2.5″ hard drive with a storage capacity of 1TB and featuring a USB interface. WD10TMVW Western Digital 1TB 5400RPM USB 3.0 2.5-inch Hard Disk Drive.
All information about the Western Digital WD10TMVW hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD10TMVW Technical Details:
- Hard Disk Model: WDC WD10TMVW
- Disk Family: Scorpio Blue
- Form Factor: 2.5″
- Capacity: 1 TB (1 x 1 000 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 5200 RPM
- Rotation Time: 11.54 ms
- Average Rotational Latency: 5.77 ms
- Disk Interface: USB 3.0
- Buffer-Host Max. Rate: 400 MB/seconds
- Buffer Size: 8192 KB
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.6 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 500 mA
- Power Required (Seek): 2.5 W
- Power Required (Idle): 2.0 W
- Power Required (Standby): 0.25 W
- Manufacturer: Western Digital Corporation
Western Digital WD10TMVW Hard Drives:
- WD10TMVW-11ZSMS0, DCM EHMTJBBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS1, DCM HBMT2HBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS1, DCM EBMTJBBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS5, DCM HBMTJBBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS1, DCM HBMTJBBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS1, DCM HHMTJHBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS1, DCM HHMTJHNN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS0, DCM HBMTJBNN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS4, DCM EHMT2BBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS5, DCM EBOT2HBB, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS4, DCM EHOT2HBB, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS4, DCM HHMTJHN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS4, DCM HBMT2BNN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS1, DCM EBMTJHNB, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS5, DCM HHMTJBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS4, DCM EHMT2BN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS4, DCM HBOT2HBB, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS5, DCM HBOT2HBB, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS4, DCM HHOT2HBB, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS0, DCM HBMTJHBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS4, DCM HHOT2HNB, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS1, DCM HBMTJHN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS5, DCM HHOT2BBB, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS4, DCM HBMTJHBN, Western Digital 1TB USB 2.5″ Hard Drive
- WD10TMVW-11ZSMS5, DCM EHMT2BNN, Western Digital 1TB USB 2.5″ Hard Drive
Western Digital WD10TMVW Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD10TMVW Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD10TMVW Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701292-001, 2060-771814-001, 2060-771737-000, 2060-771761-001, etc.
Multiple Model Number revisions:
WD10TMVW-11ZSMS0, WD10TMVW-11ZSMS5, WD10TMVW-11ZSMS1, WD10TMVW-11ZSMS4, etc.
