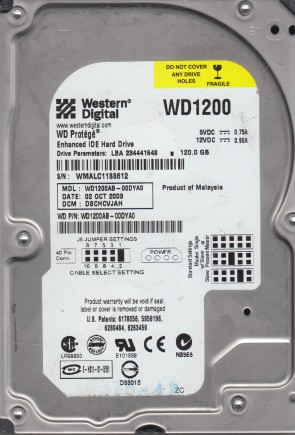

WD1200AB Western Digital 3.5″ hard drive with a storage capacity of 120GB and featuring a IDE interface. WD1200AB-32DYA0 Western Digital 120GB 5400RPM ATA-100 3.5-inch Hard Drive.
All information about the Western Digital WD1200AB hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD1200AB Technical Details:
- Hard Disk Model: WDC WD1200AB
- Disk Family: Protege
- Form Factor: 3.5″
- Capacity: 120 GB (120 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 3
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Ultra-ATA/100
- Buffer-Host Max. Rate: 100 MB/seconds
- Buffer Size: 2048 KB
- Drive Ready Time (typical): 6 seconds
- Average Seek Time: 12.8 ms
- Track To Track Seek Time: 2.0 ms
- Full Stroke Seek Time: 28.5 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 485 grams (1.07 pounds)
- Manufacturer: Western Digital Corporation
Western Digital WD1200AB Hard Drives:
- WD1200AB-00DYA0, DCM DSCHCVJAH, Western Digital 120GB IDE 3.5″ Hard Drive
- WD1200AB-00CBA1, DCM DSFANA2AH, Western Digital 120GB IDE 3.5″ Hard Drive
- WD1200AB-22DYA0, DCM DSBHCVJAH, Western Digital 120GB IDE 3.5″ Hard Drive
- WD1200AB-22CBA1, DCM HSEHNA2AH, Western Digital 120GB IDE 3.5″ Hard Drive
- WD1200AB-00DBA0, DCM HSBHNVJAH, Western Digital 120GB IDE 3.5″ Hard Drive
- WD1200AB-22CBA1, DCM HSFHNA2AH, Western Digital 120GB IDE 3.5″ Hard Drive
- WD1200AB-00DYA0, DCM HSCHCVJAH, Western Digital 120GB IDE 3.5″ Hard Drive
- WD1200AB-22CBA1, DCM HSEHCV2AH, Western Digital 120GB IDE 3.5″ Hard Drive
Western Digital WD1200AB Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD1200AB Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD1200AB Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-001128-005, 2060-001173-004, 2060-001092-007, etc.
Multiple Model Number revisions:
WD1200AB-00CBA1, WD1200AB-22DYA0, WD1200AB-00DBA0, WD1200AB-00DYA0, WD1200AB-22CBA1, etc.
