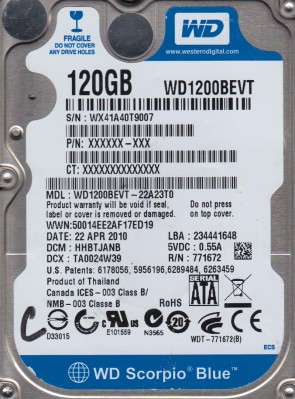

WD1200BEVT Western Digital 2.5″ hard drive with a storage capacity of 120GB and featuring a SATA interface. WD1200BEVT-00A23T0 Western Digital 120GB 5400RPM SATA 3Gb/s 2.5-inch Hard Drive.
All information about the Western Digital WD1200BEVT hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD1200BEVT Technical Details:
- Hard Disk Model: WDC WD1200BEVT
- Disk Family: Scorpio Blue
- Form Factor: 2.5″
- Capacity: 120 GB (120 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Drive Ready Time (typical): 4 seconds
- Average Seek Time: 12 ms
- Track To Track Seek Time: 2 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 117 grams (0.26 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.6 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 500 mA
- Power Required (Seek): 2.5 W
- Power Required (Idle): 2.0 W
- Power Required (Standby): 0.25 W
- Manufacturer: Western Digital Corporation
Western Digital WD1200BEVT Hard Drives:
- WD1200BEVT-22A23T0, DCM HHBTJANB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-22ZCT0, DCM HHNVJNHB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-00A23T0, DCM HHCTJABB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-22A23T0, DCM HHBVJHNB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-22ZCT0, DCM HHCTJHBB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-75ZCT2, DCM HACT2HBB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-22ZCT0, DCM FBNTJHNB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-00A23T0, DCM HHBTJHBB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-75ZCT2, DCM DHNVJBBB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-00A23T0, DCM HEBTJHNB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-11A23T0, DCM HHCVJHB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-00A23T0, DCM HHMTJHB, Western Digital 120GB SATA 2.5″ Hard Drive
- WD1200BEVT-00A23T0, DCM HECTJHBB, Western Digital 120GB SATA 2.5″ Hard Drive
Western Digital WD1200BEVT Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD1200BEVT Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD1200BEVT Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701499-005, 2060-701499-000, 2060-771672-001, 2060-771672-004, etc.
Multiple Model Number revisions:
WD1200BEVT-22A23T0, WD1200BEVT-22ZCT0, WD1200BEVT-75ZCT2, WD1200BEVT-11A23T0, WD1200BEVT-00A23T0, etc.
