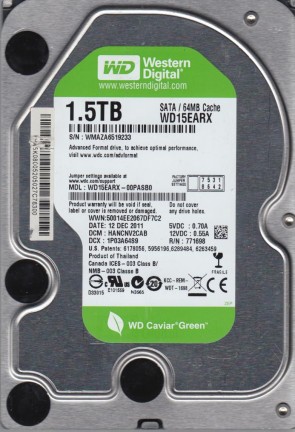

WD15EARX Western Digital 3.5″ hard drive with a storage capacity of 1.5TB and featuring a SATA interface. WD15EARX-00ZUDB0 Western Digital Caviar Green 1.5TB 5400RPM SATA 6Gb/s 64MB Cache 3.5-inch Hard Drive.
All information about the Western Digital WD15EARX hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD15EARX Technical Details:
- Hard Disk Model: WDC WD15EARX
- Disk Family: Caviar Green
- Form Factor: 3.5″
- Capacity: 1500 GB (1500 x 1 000 000 000 bytes)
- Number Of Disks: 3
- Number Of Heads: 6
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 65536 KB
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 640 grams (1.41 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 2.9 Bel
- Required Power For Spinup: 1750 mA
- Power Required (Seek): 4.5 W
- Power Required (Idle): 2.5 W
- Power Required (Standby): 0.7 W
- Manufacturer: Western Digital Corporation
Western Digital WD15EARX Hard Drives:
- WD15EARX-00PASB0, DCM HANCNV2CAB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM HHRCHV2CHB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM HARCNV2CAB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM HBNNHTJCAB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM HARNHT2MAB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-22PASB0, DCM HHNNHTJCAB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-22PASB0, DCM HARNNTJCHB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM HHRNHT2MAB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM HBRCHV2CAB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM HHNNNTJCHB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM DHRNHT2MHB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM DARNHT2MAB, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM HARNHTJMA, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00ZUDB0, DCM HANCHV2AA, Western Digital 1.5TB SATA 3.5″ Hard Drive
- WD15EARX-00PASB0, DCM HANNNTJMAB, Western Digital 1.5TB SATA 3.5″ Hard Drive
Western Digital WD15EARX Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD15EARX Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD15EARX Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771698-002, 2060-771716-001, 2060-771698-004, etc.
Multiple Model Number revisions:
WD15EARX-22PASB0, WD15EARX-00ZUDB0, WD15EARX-00PASB0, etc.
