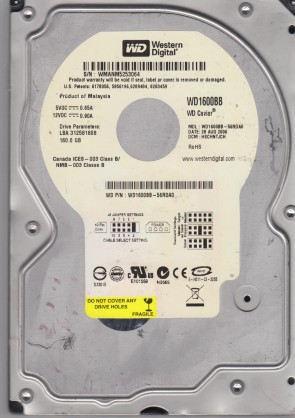

WD1600BB Western Digital 3.5″ hard drive with a storage capacity of 160GB and featuring a IDE interface. WD1600BB-00DUA3 Western Digital 160GB 7200RPM ATA-100 3.5-inch Hard Drive.
All information about the Western Digital WD1600BB hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD1600BB Technical Details:
- Manufacturer: Western Digital
- Manufacturer Website: www.wdc.com
- Manufacturer Part No: WD1600BB
- Product Series or Family: Caviar
- Product Type: Internal Hard Drive
- Storage Capacity: 160GB
- Spindle Speed: 7200RPM
- Drive Interface: Ultra-ATA/100
- Form Factor: 3.5Inch
- Cache: 2MB
Western Digital WD1600BB Hard Drives:
- WD1600BB-56RDA0, DCM HSCHNTJCH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-56RDA0, DCM HBBHYTJCAN, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-56RDA0, DCM HBCHYTJCHN, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-22GUA0, DCM HSBHCTJAH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-00GUC0, DCM HSBHNT2CH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-00RDA0, DCM HSBHNTJCA, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-22GUA0, DCM DSBACTJAH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-00HTA0, DCM HSBHCTJCH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-56RDA0, DCM DBBANTJCAN, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-98DWA0, DCM DSBHCTJAA, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-22RDA0, DCM HBCHNTJAHN, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-22GUC0, DCM DSCACTJCA, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-00FTA0, DCM HSBHNTJAH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-22GUC0, DCM HSCANTJAA, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-00RDA0, DCM HSCHYT2AAN, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-98FTA0, DCM FSBACTJCA, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-55GUC0, DCM HSBHNTJAH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-56RDA0, DCM DSBHCTJCH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-56RDA0, DCM DSCHNTJAH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-55RDA0, DCM HSBHCTJCH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-00DWA0, DCM HSCHCVJAH, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-00GUA0, DCM DSBHCTJAA, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-00GUC0, DCM HSCANTJAA, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-22GUA0, DCM HSBACTJAA, Western Digital 160GB IDE 3.5″ Hard Drive
- WD1600BB-00FTA0, DCM HSBHCTJCA, Western Digital 160GB IDE 3.5″ Hard Drive
Western Digital WD1600BB Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD1600BB Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD1600BB Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701292-001, 2060-701266-001, 2060-001266-001, 2060-701292-002, 2060-001173-004, etc.
Multiple Model Number revisions:
WD1600BB-22GUC0, WD1600BB-98FTA0, WD1600BB-55GUC0, WD1600BB-56RDA0, WD1600BB-55RDA0, WD1600BB-00DWA0, WD1600BB-50DWA0, WD1600BB-14GUC0, WD1600BB-00HTA0, WD1600BB-22RDA0, WD1600BB-00GUA0, WD1600BB-00FTA0, WD1600BB-22GUA0, WD1600BB-00RDA0, WD1600BB-98DWA0, WD1600BB-00GUC0, etc.
