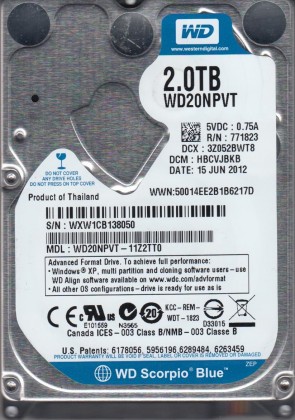

WD20NPVT Western Digital 2.5″ hard drive with a storage capacity of 2TB and featuring a SATA interface. WD20NPVT Western Digital Green 2TB 5400RPM (intellipower) SATA 3GB/s 2.5-inch 8MB Cache Internal Laptop Hard Drive.
All information about the Western Digital WD20NPVT hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD20NPVT Technical Details:
- Hard Disk Model: WDC WD20NPVT
- Disk Family: Green
- Form Factor: 2.5″
- Capacity: 2 TB (2 x 1 000 000 000 000 bytes)
- Number Of Disks: 4
- Number Of Heads: 8
- Rotational Speed: 5200 RPM
- Rotation Time: 11.54 ms
- Average Rotational Latency: 5.77 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Width: 69.85 mm (2.75 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 15 mm (0.59 inch)
- Weight: 180 grams (0.40 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 2.5 Bel
- Required Power For Spinup: 1000 mA
- Power Required (Seek): 1.7 W
- Power Required (Idle): 0.8 W
- Power Required (Standby): 0.2 W
- Manufacturer: Western Digital Corporation
Western Digital WD20NPVT Hard Drives:
- WD20NPVT-11Z2TT0, DCM HBCVJBKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-11Z2TT0, DCM EBCVJBBB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-11Z2TT0, DCM EBCVJHKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-11Z2TT0, DCM HHOTJBKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM HBOTJHKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM EBMTJHBB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-11Z2TT0, DCM HBCVJBBB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-11Z2TT0, DCM HBOTJBKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM HBKTJHKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM EBKTJHKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM EBCTJHBB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-11Z2TT0, DCM EHCVJBBB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-11Z2TT0, DCM HHCVJHBB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM EHOTJHBB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM EHOTJHKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM EHMTJHBB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM HHOTJHKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM EHCVJBKB, Western Digital 2TB SATA 2.5″ Hard Drive
- WD20NPVT-00Z2TT0, DCM HBCVJHKB, Western Digital 2TB SATA 2.5″ Hard Drive
Western Digital WD20NPVT Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD20NPVT Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD20NPVT Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771823-000, 2060-771823-00, etc.
Multiple Model Number revisions:
WD20NPVT-11Z2TT0, WD20NPVT-00Z2TT0, etc.
