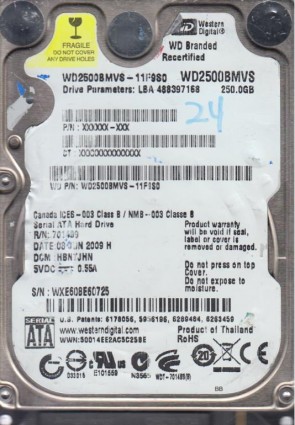

WD2500BMVS Western Digital 2.5″ hard drive with a storage capacity of 250GB and featuring a SATA interface. WD2500BMVS Western Digital 250GB 5400RPM SATA 3GB/s 8MB Cache 2.5-inch Hard Disk Drive.
All information about the Western Digital WD2500BMVS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD2500BMVS Technical Details:
- Manufacturer: Western Digital
- Manufacturer Website: www.wdc.com
- Manufacturer Part No: WD2500BMVS
- Product Series or Family: Branded
- Product Type: Internal Hard Drive
- Storage Capacity: 250GB
- Spindle Speed: 5400RPM
- Drive Interface: SATA 3.0Gbps
- Form Factor: 2.5Inch
- Cache: 8MB
Western Digital WD2500BMVS Hard Drives:
- WD2500BMVS-11F9S0, DCM HBNTJHN, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500BMVS-11F9S0, DCM HHNTJHN, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500BMVS-11F9S0, DCM HHNTJHB, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500BMVS-11F9S0, DCM HANTJHN, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500BMVS-11F9S0, DCM HANTJANB, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500BMVS-11F9S0, DCM HANTJBNB, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500BMVS-11F9S0, DCM HHNTJHNB, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500BMVS-11F9S0, DCM HANTJHBB, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500BMVS-11F9S0, DCM HANTJAB, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500BMVS-11F9S0, DCM HANTJHB, Western Digital 250GB SATA 2.5″ Hard Drive
Western Digital WD2500BMVS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD2500BMVS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD2500BMVS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701499-000, etc.
Multiple Model Number revisions:
WD2500BMVS-11F9S0, etc.
