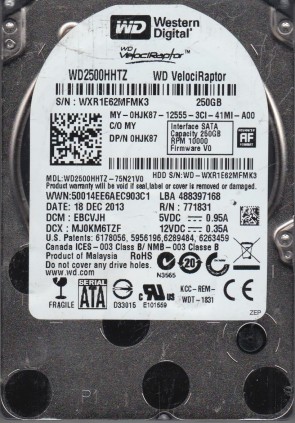

WD2500HHTZ Western Digital 2.5″ hard drive with a storage capacity of 250GB and featuring a SATA interface. WD2500HHTZ Western Digital VelociRaptor 250GB 10000RPM SATA 6Gb/s 64MB Cache 3.5-inch Hard Drive.
All information about the Western Digital WD2500HHTZ hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD2500HHTZ Technical Details:
- Hard Disk Model: WDC WD2500HHTZ
- Disk Family: VelociRaptor
- Form Factor: 3.5″
- Capacity: 250 GB (250 x 1 000 000 000 bytes)
- Rotational Speed: 10000 RPM
- Rotation Time: 6.00 ms
- Average Rotational Latency: 3.00 ms
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 65536 KB
- Drive Ready Time (typical): 8 seconds
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 500 grams (1.10 pounds)
- Manufacturer: Western Digital Corporation
Western Digital WD2500HHTZ Hard Drives:
- WD2500HHTZ-75N21V0, DCM EBCVJH, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500HHTZ-75N21V0, DCM EBCVJB, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500HHTZ-75N21V0, DCM EHCVJH, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500HHTZ-75N21V0, DCM EHCVJB, Western Digital 250GB SATA 2.5″ Hard Drive
- WD2500HHTZ-04N21V0, DCM EHCVJH, Western Digital 250GB SATA 2.5″ Hard Drive
Western Digital WD2500HHTZ Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD2500HHTZ Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD2500HHTZ Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771831-001, etc.
Multiple Model Number revisions:
WD2500HHTZ-75N21V0, WD2500HHTZ-04N21V0, etc.
