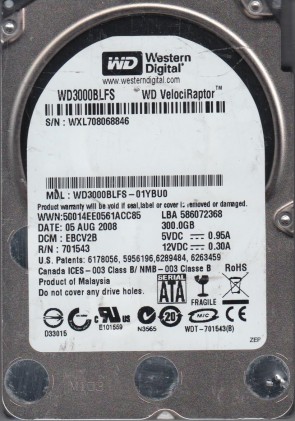

WD3000BLFS Western Digital 2.5″ hard drive with a storage capacity of 300GB and featuring a SATA interface. WD3000BLFS-08YBU0 Western Digital 300GB 10000RPM SATA 3Gb/s 2.5-inch Hard Drive.
All information about the Western Digital WD3000BLFS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD3000BLFS Technical Details:
- Hard Disk Model: WDC WD3000BLFS
- Disk Family: VelociRaptor
- Form Factor: 2.5″
- Capacity: 300 GB (300 x 1 000 000 000 bytes)
- Rotational Speed: 10000 RPM
- Rotation Time: 6.00 ms
- Average Rotational Latency: 3.00 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 16384 KB
- Drive Ready Time (typical): 7 seconds
- Average Seek Time: 3.6 ms
- Track To Track Seek Time: 0.4 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100 mm (3.94 inch)
- Height: 15 mm (0.59 inch)
- Weight: 219 grams (0.48 pounds)
- Manufacturer: Western Digital Corporation
Western Digital WD3000BLFS Hard Drives:
- WD3000BLFS-01YBU0, DCM EBCV2B, Western Digital 300GB SATA 2.5″ Hard Drive
- WD3000BLFS-08YBU0, DCM EBCV2B, Western Digital 300GB SATA 2.5″ Hard Drive
- WD3000BLFS-01YBU4, DCM EHCV2H, Western Digital 300GB SATA 2.5″ Hard Drive
- WD3000BLFS-01YBU1, DCM EBCV2B, Western Digital 300GB SATA 2.5″ Hard Drive
- WD3000BLFS-60YBU0, DCM EBCV2B, Western Digital 300GB SATA 2.5″ Hard Drive
Western Digital WD3000BLFS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD3000BLFS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD3000BLFS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701543-003, etc.
Multiple Model Number revisions:
WD3000BLFS-01YBU0, WD3000BLFS-08YBU0, WD3000BLFS-01YBU4, WD3000BLFS-01YBU1, WD3000BLFS-60YBU0, etc.
