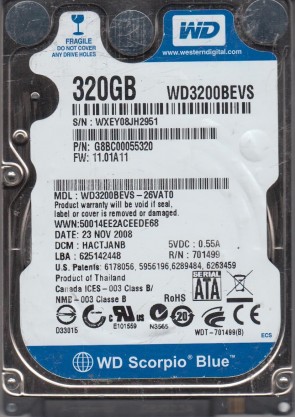

WD3200BEVS Western Digital 2.5″ hard drive with a storage capacity of 320GB and featuring a SATA interface. WD3200BEVS-00VAT0 Western Digital Scorpio Blue 320GB 5400RPM SATA 3Gbps 8MB Cache 2.5-inch Internal Hard Drive.
All information about the Western Digital WD3200BEVS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD3200BEVS Technical Details:
- Hard Disk Model: WDC WD3200BEVS
- Disk Family: Scorpio Blue
- Form Factor: 2.5″
- Capacity: 320 GB (320 x 1 000 000 000 bytes)
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/150
- Buffer-Host Max. Rate: 150 MB/seconds
- Buffer Size: 8192 KB
- Drive Ready Time (typical): 4 seconds
- Average Seek Time: 12 ms
- Track To Track Seek Time: 2 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 117 grams (0.26 pounds)
- Manufacturer: Western Digital Corporation
Western Digital WD3200BEVS Hard Drives:
- WD3200BEVS-26VAT0, DCM HACTJANB, Western Digital 320GB SATA 2.5″ Hard Drive
- Western Digital WD3200BEVS, 5400RPM, 1.5Gp/s, 320GB SATA 2.5″ HDD
- WD3200BEVS-26VAT0, DCM HACVJBNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM DHNTJANB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-16VAT0, DCM HANTJBBB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM DHYTJHNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-60VAT0, DCM HACVJABB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM DHNT2BNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM HHCVJHNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-60VAT0, DCM HACVJAB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM HHNTJBNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM HANTJHNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-08VAT2, DCM DHNTJBNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM DANTJBNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-08VAT2, DCM HANTJABB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-08VAT2, DCM HHCT2BBB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM DBCT2BNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM HHYTJBNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM HACTJBNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-08VAT2, DCM HHCTJANB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-08VAT2, DCM DANTJHNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-08VAT2, DCM HHNT2HBB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-08VAT2, DCM HHNTJHBB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM DANT2BNB, Western Digital 320GB SATA 2.5″ Hard Drive
- WD3200BEVS-26VAT0, DCM HHCT2BNB, Western Digital 320GB SATA 2.5″ Hard Drive
Western Digital WD3200BEVS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD3200BEVS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD3200BEVS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701499-005, 2060-701499-000, 2060-701499-005, etc.
Multiple Model Number revisions:
WD3200BEVS, WD3200BEVS-16VAT0, WD3200BEVS-60VAT0, WD3200BEVS-26VAT0, WD3200BEVS-08VAT2, etc.
