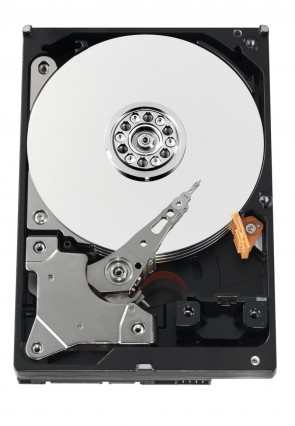

WD4000KD Western Digital 3.5″ hard drive with a storage capacity of 400GB and featuring a SATA interface. WD4000KD Western Digital Caviar Se16 400GB 7200RPM SATA-150 16MB Cache 3.5-inch Low Profile (1 inch) Hard Drive.
All information about the Western Digital WD4000KD hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD4000KD Technical Details:
- Manufacturer: Western Digital
- Manufacturer Website: www.wdc.com
- Manufacturer Part No: WD4000KD-00NAB0
- Product Series or Family: Caviar SE16
- Product Type: Internal Hard Drive
- Storage Capacity: 400GB
- Spindle Speed: 7200RPM
- Drive Interface: SATA
- Form Factor: 3.5Inch
- Cache: 16MB
Western Digital WD4000KD Hard Drives:
- Western Digital WD4000KD, 7200RPM, 1.5Gp/s, 400GB SATA 3.5″ HDD
- WD4000KD-00NAB0, DCM HCACAJAA, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HCHCAJAH, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HCHCAJAA, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HBACAJAH, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HCACAJCH, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HCHCAJCH, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HBACAJAA, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HBHCAJAH, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-55NSB2, DCM HBHCAJAH, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HCACAJAH, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HBHCAJCA, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-55NSB2, DCM HCACAJAH, Western Digital 400GB SATA 3.5″ Hard Drive
- WD4000KD-00NAB0, DCM HBHCAJCH, Western Digital 400GB SATA 3.5″ Hard Drive
Western Digital WD4000KD Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD4000KD Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD4000KD Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701310-004, 2060-701310-003, etc.
Multiple Model Number revisions:
WD4000KD, WD4000KD-55NSB2, WD4000KD-00NAB0, etc.
