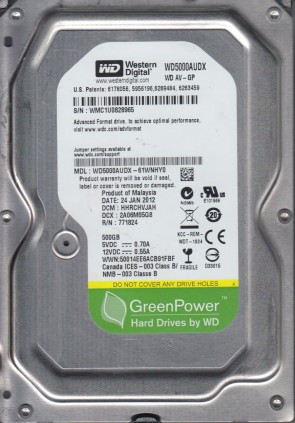

WD5000AUDX Western Digital 3.5″ hard drive with a storage capacity of 500GB and featuring a SATA interface. WD5000AUDX Western Digital Av-Gp 500GB 5400RPM (intellipower) SATA 6GB/s 32MB Cache 3.5-inch Internal Hard Drive.
All information about the Western Digital WD5000AUDX hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD5000AUDX Technical Details:
- Hard Disk Model: WDC WD5000AUDX
- Disk Family: AV-GP
- Form Factor: 3.5″
- Capacity: 500 GB (500 x 1 000 000 000 bytes)
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 32768 KB
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 450 grams (0.99 pounds)
- Manufacturer: Western Digital Corporation
Western Digital WD5000AUDX Hard Drives:
- WD5000AUDX-61WNHY0, DCM HHRCHVJAH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-56WNHY0, DCM HHRCHVJCE, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-56WNHY0, DCM HBNCHVJMH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-63WNHY0, DCM HGNNHT2CHB, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-61WNHY0, DCM HHNNKV2AH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-56WNHY0, DCM HANNKVJAG, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-73H9TY0, DCM DHNNKT2CEB, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-56WNHY0, DCM HHNCHVJAH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-56WNHY0, DCM HARNHVJMGB, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-61WNHY0, DCM HARCKV2AH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-63WNHY0, DCM DANCHV2AH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-63WNHY0, DCM EGNCNV2AH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-63WNHY0, DCM HHRNKVJAH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-63WNHY0, DCM HANCKVJAE, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-56WNHY0, DCM HHRNKVJMHB, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-56WNHY0, DCM EANNHVJMH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-73H9TY0, DCM HANNKT2AHB, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-57WNHY0, DCM HANCHV2AH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-63WNHY0, DCM HBNNHVJAH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-63WNHY0, DCM HANCHVJMH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-57WNHY0, DCM HANCKV2AH, Western Digital 500GB SATA 3.5″ Hard Drive
- WD5000AUDX-61WNHY0, DCM HANCHV2AH, Western Digital 500GB SATA 3.5″ Hard Drive
Western Digital WD5000AUDX Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD5000AUDX Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD5000AUDX Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771945-001, 2060-771824-005, etc.
Multiple Model Number revisions:
WD5000AUDX-56WNHY0, WD5000AUDX-73H9TY0, WD5000AUDX-63WNHY0, WD5000AUDX-57WNHY0, WD5000AUDX-61WNHY0, etc.
